TruEbox 03MR (64×64) PRO is primarily designed for signal acquisition and imaging from array sensors,
supporting array readout with a maximum resolution of 64 × 64.
It provides 64-channel row selecting signals, 2 DC bias voltage signals, and 64-channel current readout paths.
Via USB connection, the acquired signals from the array sensor are transmitted to the PC terminal.
The signal strength is displayed on the terminal as a 256 grey level image. When paired with a compatible thin-film transistor (TFT) array chip,
it enables the detection of signals such as light and pressure.
TruEbox 03MR (64×64) PRO is primarily designed for signal acquisition and imaging from array sensors, supporting array readout with a maximum resolution of 64 × 64. It provides 64-channel row selecting signals, 2 DC bias voltage signals, and 64-channel current readout paths. Via USB connection, the acquired signals from the array sensor are transmitted to the PC terminal. The signal strength is displayed on the terminal as a 256 grey level image. When paired with a compatible thin-film transistor (TFT) array chip, it enables the detection of signals such as light and pressure.
Highlights
Positive/negative current readout
- Compatible with diverse materials
High-speed imaging acquisition
- Up to 60 fps frame rate
Wide Current Range
- Current detection range: 100pA – 500nA
Representative Applications
Multiple optoelectronic detections
X-ray
Ultraviolet
Near-infrared
System Specifications
| Parameter | Specification |
 |
| Model | LZ-03AMR PRO (64×64) | |
| L × W × H | 188 x 158 x 43mm | |
| Weight | 900g | |
| Charging interface | DC002-1.3 | |
| General |
• 64 channel pulse row signals, voltage range: -15 V~+15 V • General 64 channels of current readout (positive & negative), current range: 100 pA~500 nA • 2 channel DC bias: -15 V~+13 V |
|
| Communication | USB | |
| Terminal | PC（Windows 10 or higher） | |
| Current gear | 4 current gears (1nA/10nA/100nA/500nA) and 1 customize current gear | |
| Imaging |
• Resolution: 64 × 64 • grey level: 256 |
|
| Duration | >4 hours | |
| Refresh Rate | 60Hz on 100nA, 64 × 64 data per frame | |
| Save | Selected data by user: .CSV & .MP4 |
| Parameter | Specification |
| Model | LZ-03AMR PRO (64×64) |
| L × W × H | 188 x 158 x 43mm |
| Weight | 900g |
| Charging interface | DC002-1.3 |
| General |
• 64 channel pulse row signals, voltage range: -15V~+15V • General 64 channels of current readout (positive & negative), current range: 100pA~500nA • 2 channel DC bias: -15 V~+13 V |
| Communication | USB |
| Terminal | PC（Windows 10 or higher） |
| Current gear | 4 current gears (1nA/10nA/100nA/500nA) and 1 customize current gear |
| Imaging |
• Resolution: 64*64 • grey level: 256 |
| Duration | >4 hours |
| Refresh Rate | 60Hz on 100nA, 64 × 64 data per frame |
| Save | Selected data by user: .CSV & .MP4 |
Chip Specifications
| Parameter | Specification |

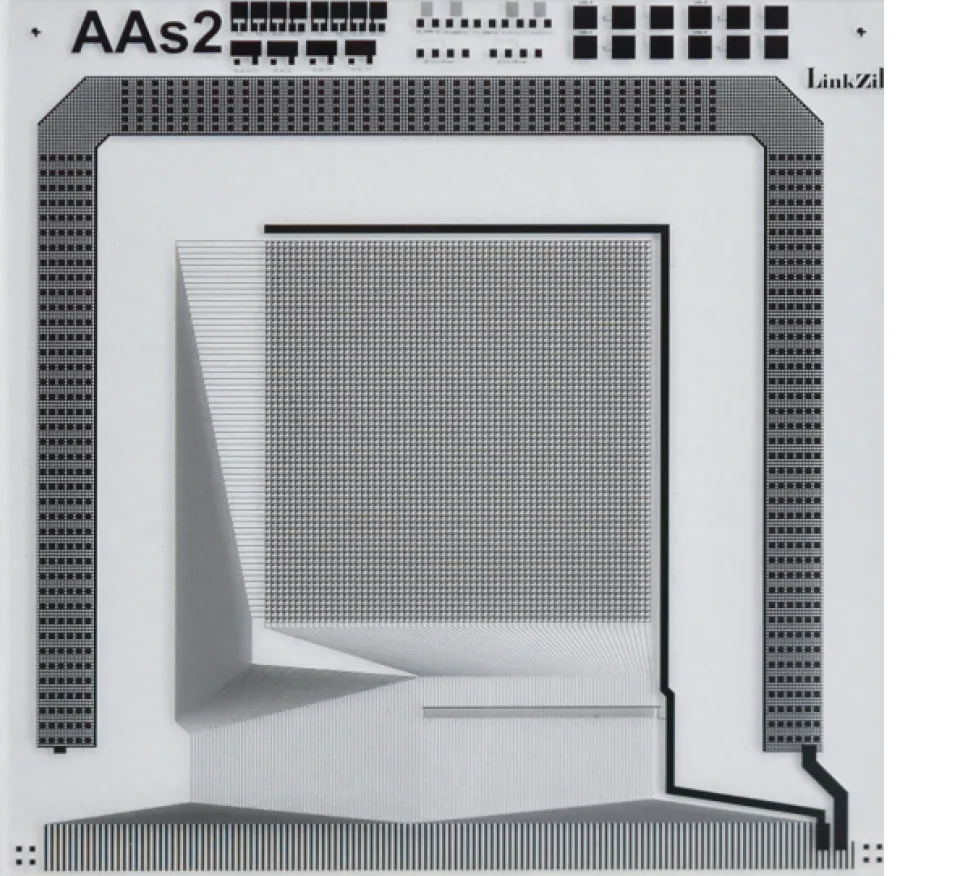

 TFT Type：a-Si Array Size：64 × 64 Chip Model：SC-X-A064-2201 |
|||
| Backplane Size（H × V × T） | 44.64 x 46.64 x 0.5mm | ||||
| Active Area Size（H × V） | 32 x 32mm | ||||
| Resolution（H*V） | 64*64 | ||||
| Pixel Size | 500 x 500μm | ||||
| TFT Size | W/L=100/10μm | ||||
| Pixel Structure | 1T0C | ||||

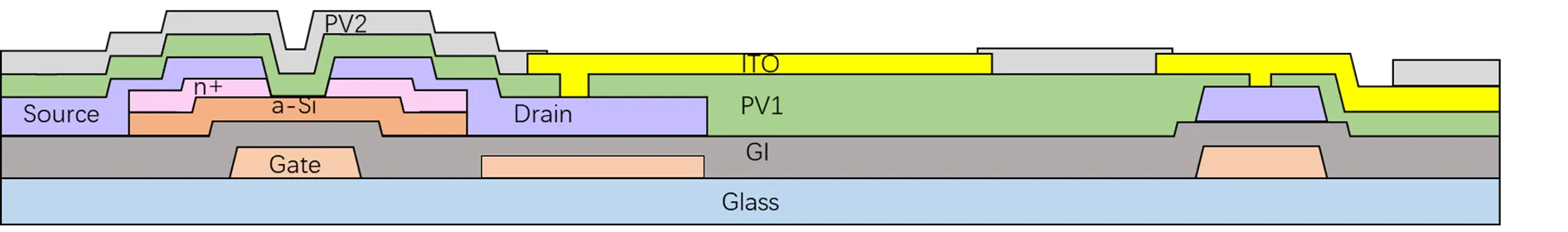

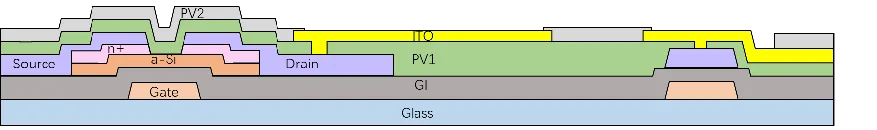

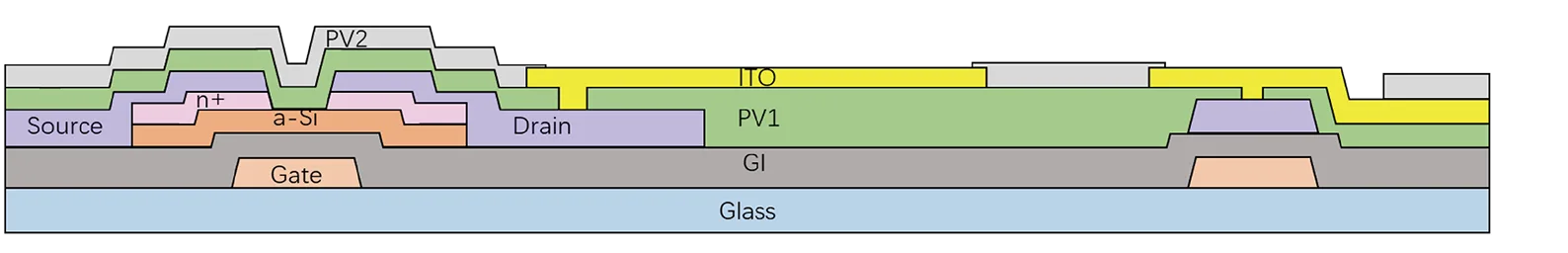

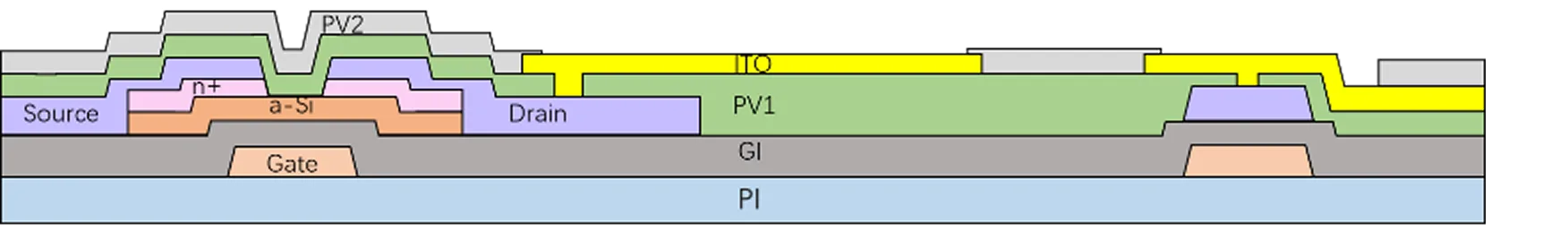

| Section |
 |
||||
| Pin Size | Space | 100μm | Width | 100μm | |
| Pitch | 200μm | Length | 1000μm | ||
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Vcom • 132-160: Dummy pin. |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | SC-X-A064-2201 | |||
| Backplane Size（H × V × T） | 44.64 x 46.64 x 0.5mm | |||
| Active Area Size（H × V） | 32 x 32mm | |||
| Resolution（H*V） | 64*64 | |||
| Pixel Size | 500 x 500μm | |||
| TFT Size | W/L=100/10μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 100μm | Width | 100μm |
| Pitch | 200μm | Length | 1000μm | |
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Vcom • 132-160: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |

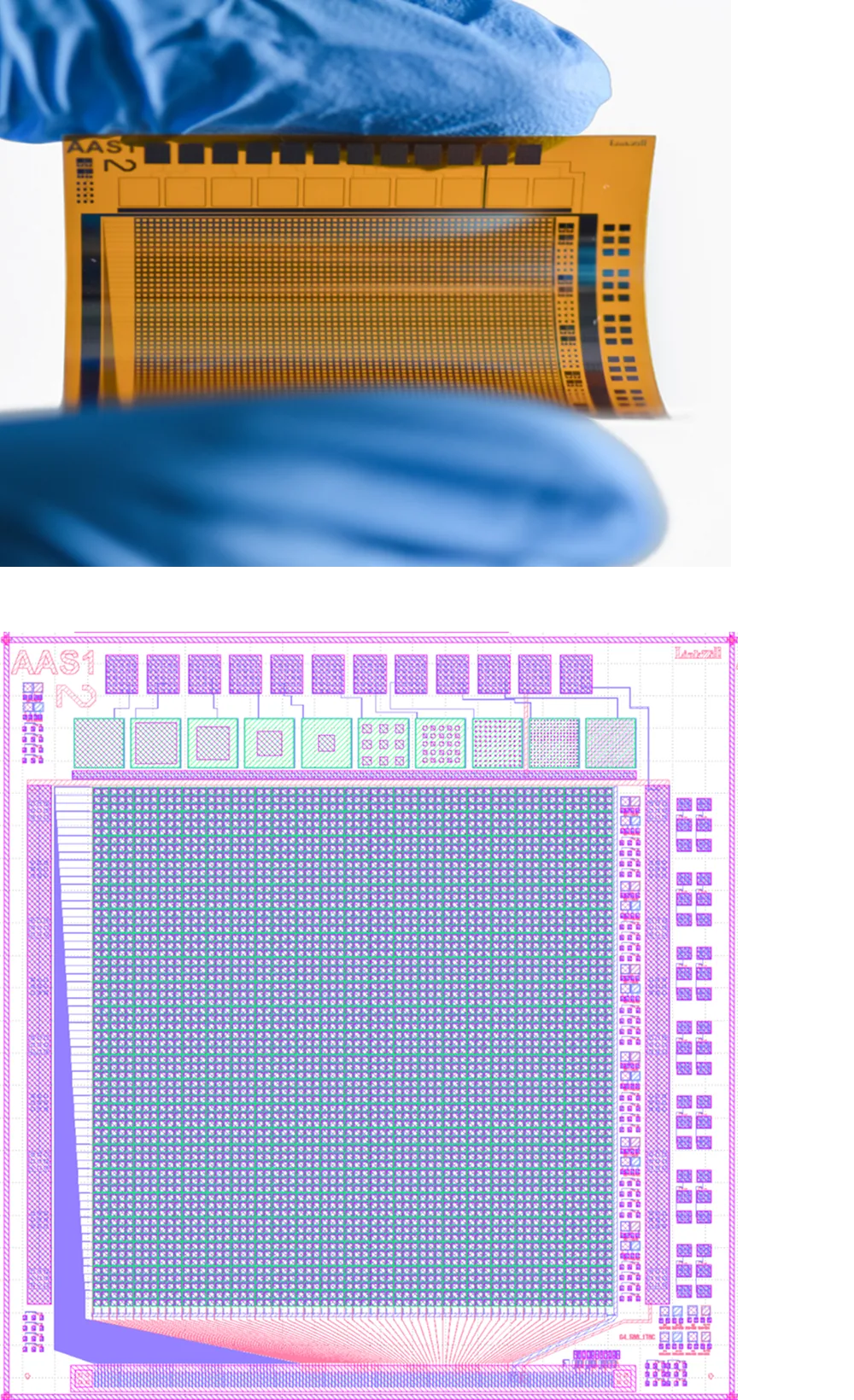

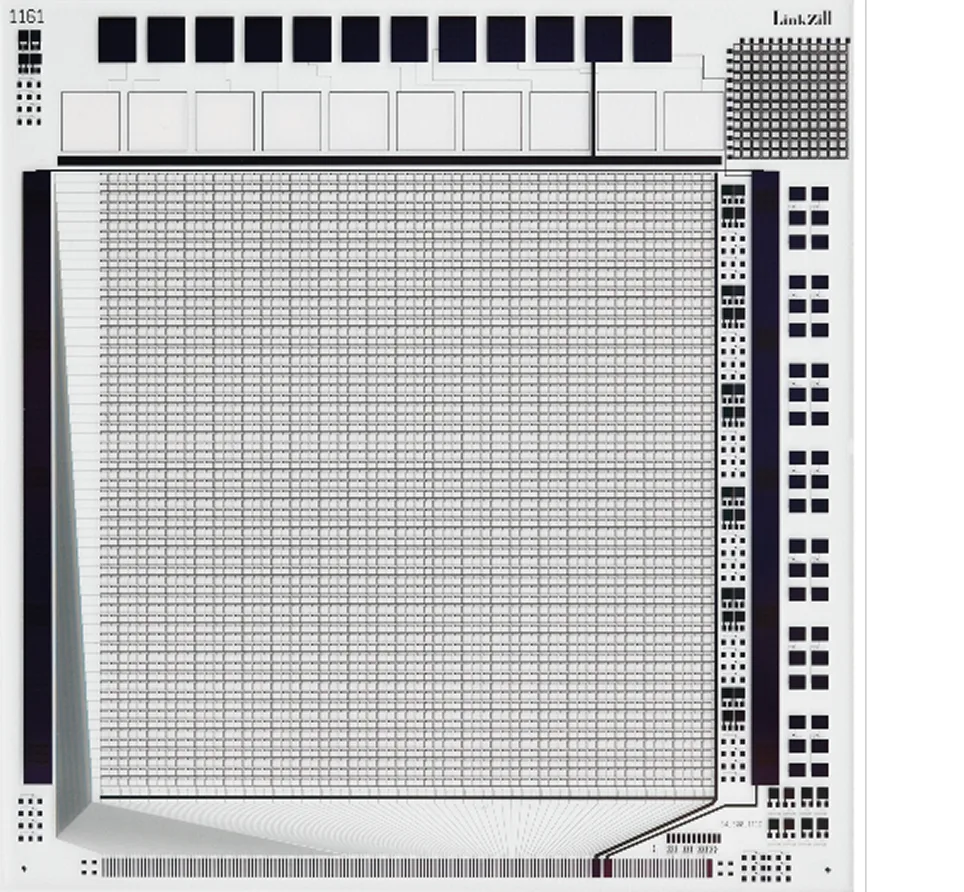

 TFT Type：a-Si Array Size：64 × 64 Chip Model：SC-T-A064-2202 |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | ||||
| Active Area Size（H × V） | 32 x 32mm | ||||
| Resolution（H*V） | 64*64 | ||||
| Pixel Size | 500 x 500μm | ||||
| TFT Size | W/L=100/10μm | ||||

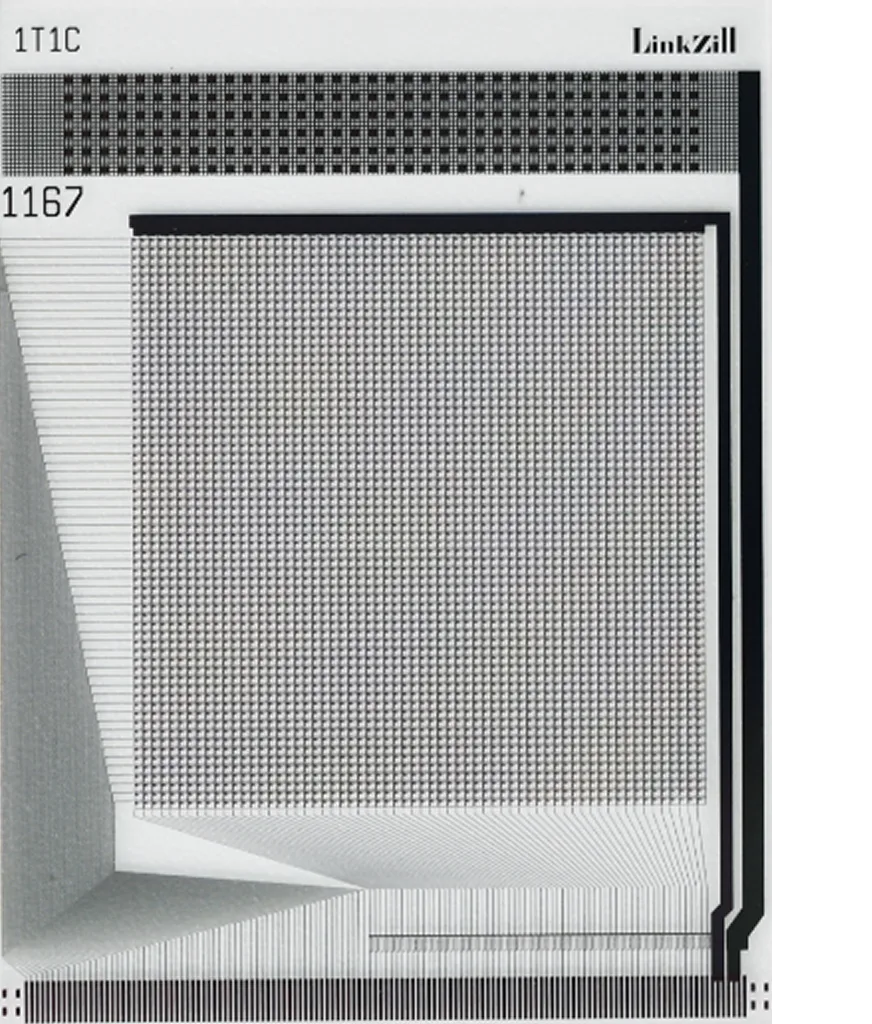

| Pixel Structure | 1T1C | ||||
| Section |
 |
||||
| Pin Size | Space | 100μm | Width | 100μm | |
| Pitch | 200μm | Length | 1000μm | ||
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Vcom (cap.） • 132-134: Vcom • 135-160: Dummy pin. |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | SC-T-A064-2202 | |||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | |||
| Active Area Size（H × V） | 32 x 32mm | |||
| Resolution（H*V） | 64*64 | |||
| Pixel Size | 500 x 500μm | |||
| TFT Size | W/L=100/10μm | |||
| Pixel Structure | 1T1C | |||
| Section |
|
|||
| Pin Size | Space | 100μm | Width | 100μm |
| Pitch | 200μm | Length | 1000μm | |
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Vcom (cap.） • 132-134: Vcom • 135-160: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |

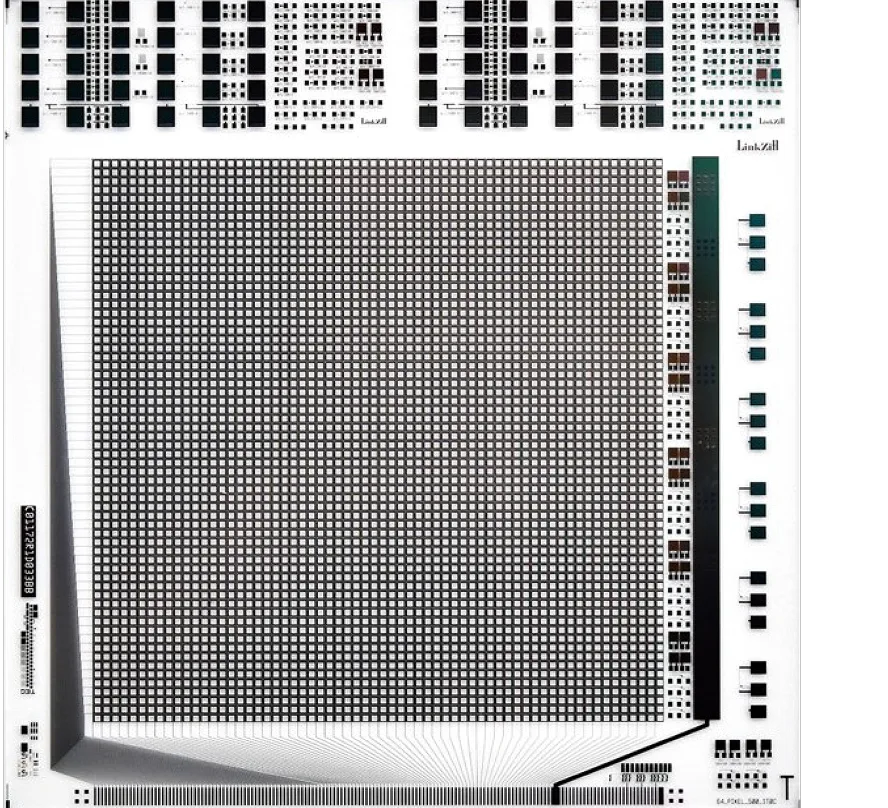

 TFT Type：a-Si Array Size：64 × 64 Chip Model：SC-T-A064-2204 |
|||
| Backplane Size（H × V × T） | 17.52 × 23.32 × 0.5mm | ||||
| Active Area Size（H × V） | 12.8 × 12.8mm | ||||
| Resolution（H*V） | 64*64 | ||||
| Pixel Size | 200 × 200μm | ||||
| TFT Size | W/L=100/10μm | ||||
| Pixel Structure | 1T1C | ||||
| Section |
 |
||||
| Pin Size | Space | 40μm | Width | 80μm | |
| Pitch | 120μm | Length | 1000μm | ||
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Vcom (cap.） • 132-134: Vcom • 135: Dummy pin. |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | SC-T-A064-2204 | |||
| Backplane Size（H × V × T） | 17.52 × 23.32 × 0.5mm | |||
| Active Area Size（H × V） | 12.8 × 12.8mm | |||
| Resolution（H*V） | 64*64 | |||
| Pixel Size | 200 × 200μm | |||
| TFT Size | W/L=100/10μm | |||
| Pixel Structure | 1T1C | |||
| Section |
|
|||
| Pin Size | Space | 40μm | Width | 80μm |
| Pitch | 120μm | Length | 1000μm | |
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Vcom (cap.） • 132-134: Vcom • 135: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
 TFT Type：a-Si Array Size：64 × 64 Chip Model：SC-T-A064-2303 |
|||
| Backplane Size（H × V × T） | 30 × 30 × 0.5mm | ||||
| Active Area Size（H × V） | 12.8 × 12.8mm | ||||
| Resolution（H*V） | 64*64 | ||||
| Pixel Size | 200 × 200μm | ||||
| TFT Size | W/L=100/10μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
|
||||
| Pin Size | Space | 100μm | Width | 100μm | |
| Pitch | 200μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Dummy pin. • 132-134: Vcom • 135: Dummy pin. |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | SC-T-A064-2303 | |||
| Backplane Size（H × V × T） | 30 × 30 × 0.5mm | |||
| Active Area Size（H × V） | 12.8 × 12.8mm | |||
| Resolution（H*V） | 64*64 | |||
| Pixel Size | 200 × 200μm | |||
| TFT Size | W/L=100/10μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 100μm | Width | 100μm |
| Pitch | 200μm | Length | 800μm | |
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Dummy pin. • 132-134: Vcom • 135: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |

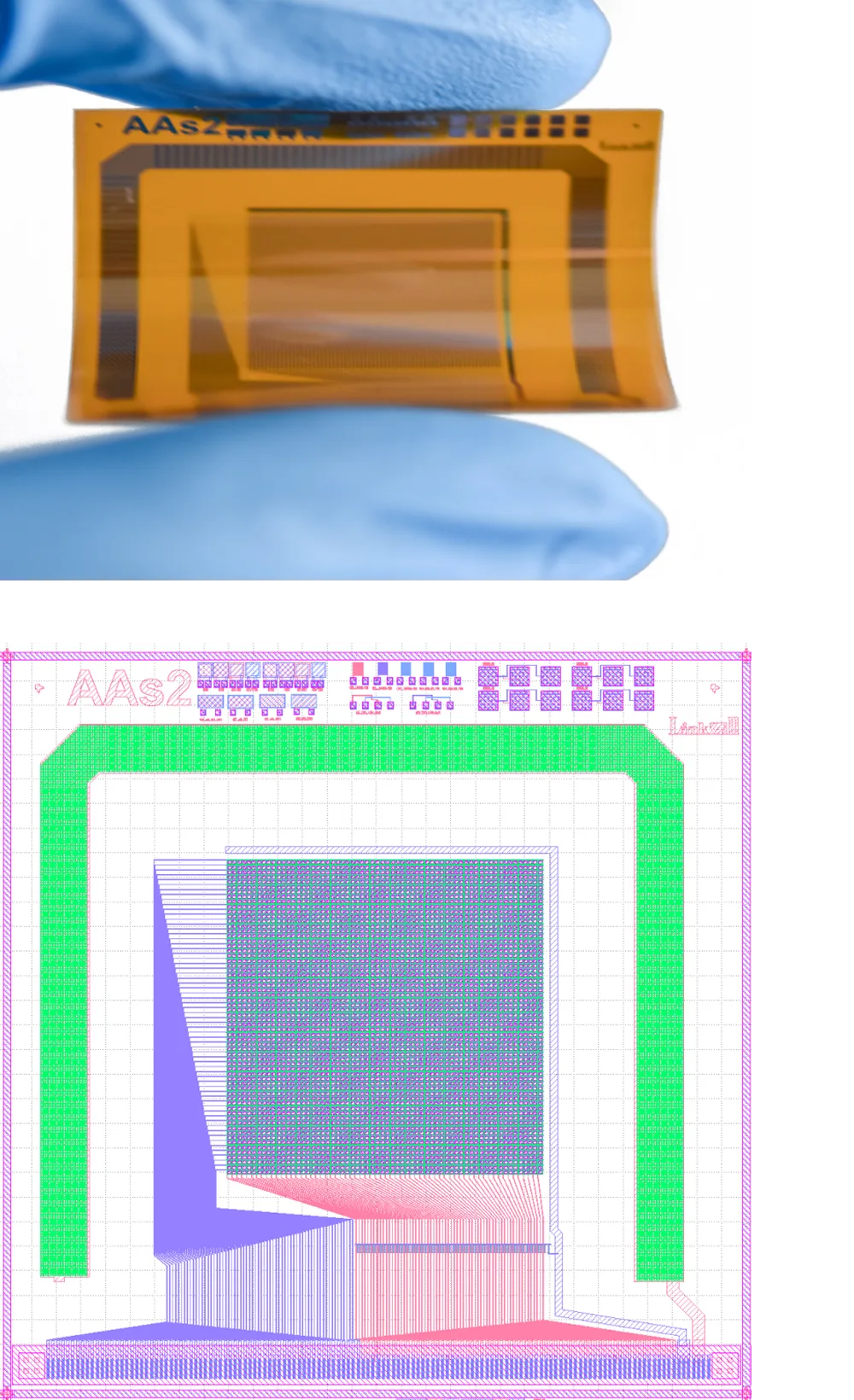

 TFT Type ：a-Si Array Size：64 × 64 Chip Model：SC-TF-A064-2301 |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.015mm | ||||
| Active Area Size（H × V） | 32 × 32mm | ||||
| Resolution（H*V） | 64*64 | ||||
| Pixel Size | 500 × 500μm | ||||
| TFT Size | W/L=100/10μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
 |
||||
| Pin Size | Space | 100μm | Width | 100μm | |
| Pitch | 200μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Dummy pin. • 132-134: Vcom • 135-160: Dummy pin. |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | SC-TF-A064-2301 | |||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.015mm | |||
| Active Area Size（H × V） | 32 × 32mm | |||
| Resolution（H*V） | 64*64 | |||
| Pixel Size | 500 × 500μm | |||
| TFT Size | W/L=100/10μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 100μm | Width | 100μm |
| Pitch | 200μm | Length | 800μm | |
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Dummy pin. • 132-134: Vcom • 135-160: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
 TFT Type：a-Si Array Size：64 × 64 Chip Model：SC-TF-A064-2303 |
|||
| Backplane Size（H × V × T） | 30 × 30 × 0.015mm | ||||
| Active Area Size（H × V） | 12.8 × 12.8mm | ||||
| Resolution（H*V） | 64*64 | ||||
| Pixel Size | 200 × 200μm | ||||
| TFT Size | W/L=100/10μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
 |
||||
| Pin Size | Space | 100μm | Width | 100μm | |
| Pitch | 200μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Dummy pin. • 132-134: Vcom • 135: Dummy pin. |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | SC-TF-A064-2303 | |||
| Backplane Size（H × V × T） | 30 × 30 × 0.015mm | |||
| Active Area Size（H × V） | 12.8 × 12.8mm | |||
| Resolution（H*V） | 64*64 | |||
| Pixel Size | 200 × 200μm | |||
| TFT Size | W/L=100/10μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 100μm | Width | 100μm |
| Pitch | 200μm | Length | 800μm | |
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Dummy pin. • 132-134: Vcom • 135: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
TFT Type：a-Si Array Size：64 × 64 Chip Model：SC-T-A064-2202 |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | ||||
| Active Area Size（H × V） | 32 x 32mm | ||||
| Resolution（H*V） | 64*64 | ||||
| Pixel Size | 500 x 500μm | ||||
| TFT Size | W/L=100/10μm | ||||
| Pixel Structure | 1T1C | ||||
| Section |
|
||||
| Pin Size | Space | 100μm | Width | 100μm | |
| Pitch | 200μm | Length | 1000μm | ||
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Vcom (cap.） • 132-134: Vcom • 135-160: Dummy pin. |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 12 × 12 | |||
| Chip Model | SC-T-A012-2202 | |||
| Backplane Size（H × V × T） | 17.52 × 23.32 × 0.5mm | |||
| Active Area Size（H x V） | 12 × 12mm | |||
| Resolution（H*V） | 12*12 | |||
| Pixel Size | 1000 × 1000μm | |||
| TFT Size | W/L=200/10μm | |||
| Pixel Structure | 1T0C | |||
| Section |
 |
|||
| Pin Size | Space | 200μm | Width | 300μm |
| Pitch | 500μm | Length | 4000μm | |
| Pin Function (from left to right) |
• 01-12: Data Read
• 13-24: Scan • 25-27: Vcom • 28-30: Dummy pin |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
Product Video
Sensing Series Comparison
 |
 |
|
| Name | TruEbox 03MR（64×64） | TruEbox 03MR PRO（64×64） |
| L × W × H | 170 x 151 x 170mm | 188 x 158 x 43mm |
| Weight | 600g | 900g |
| Power Supply | Battery | Battery |
| General |
• 64 channel pulse row signals, voltage range: -15V~+15V
• 64 channels of current readout (positive-only), current range: 100pA~200nA • 2 channel DC bias: -15V~+15V |
• 64 channel pulse row signals, voltage range: -15V~+15V
•64 channels of current readout (positive & negative), current range: 100pA~500nA • 2 channel DC bias: -15V~+13V |
| Communication | WIFI | USB |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) | PC（Windows 10 or higher） |
| Current gear |
4 current gears (1nA/10nA/100nA/200nA) and 1 customize current gear |
4 current gears (1nA/10nA/100nA/200nA) and 1 customize current gear |
| Imaging |
• Resolution: 64*64 • Grey level: 256 |
• Resolution: 64*64 • Grey level: 256 |
| Duration | >4 hours | >4 hours |
| Refresh Rate | 8.2Hz on 10nA, 64 × 64 data per frame | 60Hz on 100nA, 64 × 64 data per frame |
|
|
|
|
| Name | TruEbox 03MR（64×64） | TruEbox 03MR PRO（64×64） |
| L × W × H | 170 x 151 x 170mm | 188 x 158 x 43mm |
| Weight | 600g | 900g |
| Power Supply | Battery | Battery |
| General |
• 64 channel pulse row signals, voltage range: -15V~+15V
• 64 channels of current readout (positive-only), current range: 100pA~200nA • 2 channel DC bias: -15V~+15V |
• 64 channel pulse row signals, voltage range: -15V~+15V
•64 channels of current readout (positive & negative), current range: 100pA~500nA • 2 channel DC bias: -15V~+13V |
| Communication | WIFI | USB |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) | PC（Windows 10 or higher） |
| Current gear |
4 current gears (1nA/10nA/100nA/200nA) and 1 customize current gear |
4 current gears (1nA/10nA/100nA/200nA) and 1 customize current gear |
| Imaging |
• Resolution: 64*64 • Grey level: 256 |
• Resolution: 64*64 • Grey level: 256 |
| Duration | >4 hours | >4 hours |
| Refresh Rate | 8.2Hz on 10nA, 64 × 64 data per frame | 60Hz on 100nA, 64 × 64 data per frame |
