TruEbox 03MR (64×64) is mainly for collecting the current signal of sensor array and imaging, which can support up to 64*64 definition array.
Matrix readout system can provide 64 selecting signals, 2 DC bias voltages and 64 current readout channels.
All current data will be transmitted to android terminal device through Wi-Fi
and converted to a 256 grey level image based on the strength of the current.
The matrix readout system is very suitable for light or pressure imaging by TFT array chip.
TruEbox 03MR (64×64) is mainly for collecting the current signal of sensor array and imaging, which can support up to 64*64 definition array.
Matrix readout system can provide 64 selecting signals, 2 DC bias voltages and 64 current readout channels.
All current data will be transmitted to android terminal device through Wi-Fi and converted to a 256 grey level image based on the strength of the current.
The matrix readout system is very suitable for light or pressure imaging by TFT array chip.
Highlights
Simplify device fabrication
- Support standard techniques, including spin-coating, blade-coating
Backward compatible with 12×12 chips
- Multiple chip sizes available
Compatibility with flexible 64×64 chips
- Enable flexible testing scenarios
Representative Applications
Multiple optoelectronic detections
X-ray
Ultraviolet

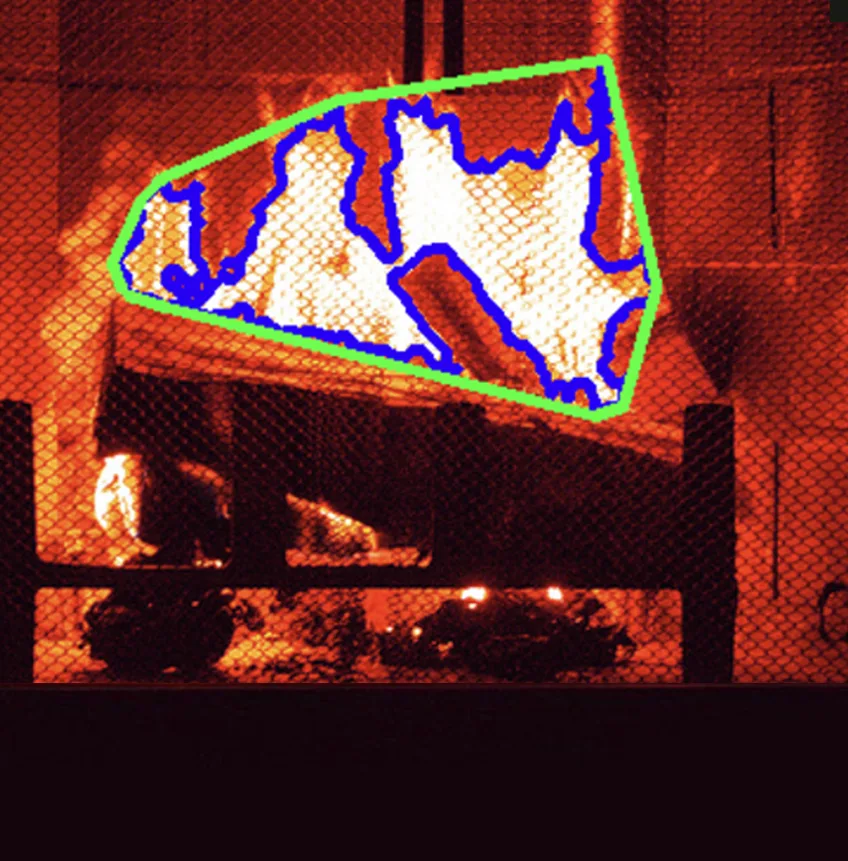

Near-infrared
System Specifications
| Parameter | Specification |
 |
| Model | LZ-03AMR (64×64) | |
| L × W × H | 170 x 151 x 170mm | |
| Weight | 600g | |
| Charging interface | DC002-1.3 | |
| General |
• 64 channel pulse row signals, voltage range: -15 V~+15 V
• 64 channels of current readout (positive-only), current range: 100 pA~200 nA • 2 channel DC bias: -15 V~+15 V |
|
| Communication | WIFI | |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) | |
| Current gear | 4 current gears (1nA/10nA/100nA/200nA) and 1 customize current gear | |
| Imaging |
• Resolution: 64 × 64 • grey level: 256 |
|
| Duration | >4 hours | |
| Refresh Rate | 8.2Hz on 10nA, 64 × 64 data per frame | |
| Save | Selected data by user: .CSV & .MP4 |
| Parameter | Specification |
| Model | LZ-03AMR (64×64) |
| L × W × H | 170 x 151 x 170mm |
| Weight | 600g |
| Charging interface | DC002-1.3 |
| General |
• 64 channel pulse row signals, voltage range: -15V~+15V
• 64 channels of current readout (positive-only), current range: 100 pA~200 nA • 2 channel DC bias: -15V~+15V |
| Communication | WIFI |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) |
| Current gear | 4 current gears (1nA/10nA/100nA/200nA) and 1 customize current gear |
| Imaging |
• Resolution: 64*64 • grey level: 256 |
| Duration | >4 hours |
| Refresh Rate | 8.2Hz on 10nA, 64 × 64 data per frame |
| Save | Selected data by user: .CSV & .MP4 |
Chip Specifications
| Parameter | Specification |
 TFT Type：a-Si Array Size：64 × 64 Chip Model：SC-X-A064-2201 |
|||
| Backplane Size（H × V × T） | 44.64 x 46.64 x 0.5mm | ||||
| Active Area Size（H × V） | 32 x 32mm | ||||
| Resolution（H*V） | 64*64 | ||||
| Pixel Size | 500 x 500μm | ||||
| TFT Size | W/L=100/10μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
 |
||||
| Pin Size | Space | 100μm | Width | 100μm | |
| Pitch | 200μm | Length | 1000μm | ||
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Vcom • 132-160: Dummy pin. |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | SC-X-A064-2201 | |||
| Backplane Size（H × V × T） | 44.64 x 46.64 x 0.5mm | |||
| Active Area Size（H × V） | 32 x 32mm | |||
| Resolution（H*V） | 64*64 | |||
| Pixel Size | 500 x 500μm | |||
| TFT Size | W/L=100/10μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 100μm | Width | 100μm |
| Pitch | 200μm | Length | 1000μm | |
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Vcom • 132-160: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
 TFT Type：a-Si Array Size：64 × 64 Chip Model：SC-T-A064-2202 |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | ||||
| Active Area Size（H × V） | 32 x 32mm | ||||
| Resolution（H*V） | 64*64 | ||||
| Pixel Size | 500 x 500μm | ||||
| TFT Size | W/L=100/10μm | ||||
| Pixel Structure | 1T1C | ||||
| Section |
 |
||||
| Pin Size | Space | 100μm | Width | 100μm | |
| Pitch | 200μm | Length | 1000μm | ||
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Vcom (cap.） • 132-134: Vcom • 135-160: Dummy pin. |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | SC-T-A064-2202 | |||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | |||
| Active Area Size（H × V） | 32 x 32mm | |||
| Resolution（H*V） | 64*64 | |||
| Pixel Size | 500 x 500μm | |||
| TFT Size | W/L=100/10μm | |||
| Pixel Structure | 1T1C | |||
| Section |
|
|||
| Pin Size | Space | 100μm | Width | 100μm |
| Pitch | 200μm | Length | 1000μm | |
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Vcom (cap.） • 132-134: Vcom • 135-160: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
 TFT Type：a-Si Array Size：64 × 64 Chip Model：SC-T-A064-2204 |
|||
| Backplane Size（H × V × T） | 17.52 × 23.32 × 0.5mm | ||||
| Active Area Size（H × V） | 12.8 × 12.8mm | ||||
| Resolution（H*V） | 64*64 | ||||
| Pixel Size | 200 × 200μm | ||||
| TFT Size | W/L=100/10μm | ||||
| Pixel Structure | 1T1C | ||||
| Section |
 |
||||
| Pin Size | Space | 40μm | Width | 80μm | |
| Pitch | 120μm | Length | 1000μm | ||
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Vcom (cap.） • 132-134: Vcom • 135: Dummy pin. |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | SC-T-A064-2204 | |||
| Backplane Size（H × V × T） | 17.52 × 23.32 × 0.5mm | |||
| Active Area Size（H × V） | 12.8 × 12.8mm | |||
| Resolution（H*V） | 64*64 | |||
| Pixel Size | 200 × 200μm | |||
| TFT Size | W/L=100/10μm | |||
| Pixel Structure | 1T1C | |||
| Section |
|
|||
| Pin Size | Space | 40μm | Width | 80μm |
| Pitch | 120μm | Length | 1000μm | |
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Vcom (cap.） • 132-134: Vcom • 135: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
 TFT Type：a-Si Array Size：64 × 64 Chip Model：SC-T-A064-2303 |
|||
| Backplane Size（H × V × T） | 30 × 30 × 0.5mm | ||||
| Active Area Size（H × V） | 12.8 × 12.8mm | ||||
| Resolution（H*V） | 64*64 | ||||
| Pixel Size | 200 × 200μm | ||||
| TFT Size | W/L=100/10μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
|
||||
| Pin Size | Space | 100μm | Width | 100μm | |
| Pitch | 200μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Dummy pin. • 132-134: Vcom • 135: Dummy pin. |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | SC-T-A064-2303 | |||
| Backplane Size（H × V × T） | 30 × 30 × 0.5mm | |||
| Active Area Size（H × V） | 12.8 × 12.8mm | |||
| Resolution（H*V） | 64*64 | |||
| Pixel Size | 200 × 200μm | |||
| TFT Size | W/L=100/10μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 100μm | Width | 100μm |
| Pitch | 200μm | Length | 800μm | |
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Dummy pin. • 132-134: Vcom • 135: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
 TFT Type ：a-Si Array Size：64 × 64 Chip Model：SC-TF-A064-2301 |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.015mm | ||||
| Active Area Size（H × V） | 32 × 32mm | ||||
| Resolution（H*V） | 64*64 | ||||
| Pixel Size | 500 × 500μm | ||||
| TFT Size | W/L=100/10μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
 |
||||
| Pin Size | Space | 100μm | Width | 100μm | |
| Pitch | 200μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Dummy pin. • 132-134: Vcom • 135-160: Dummy pin. |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | SC-TF-A064-2301 | |||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.015mm | |||
| Active Area Size（H × V） | 32 × 32mm | |||
| Resolution（H*V） | 64*64 | |||
| Pixel Size | 500 × 500μm | |||
| TFT Size | W/L=100/10μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 100μm | Width | 100μm |
| Pitch | 200μm | Length | 800μm | |
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Dummy pin. • 132-134: Vcom • 135-160: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
 TFT Type：a-Si Array Size：64 × 64 Chip Model：SC-TF-A064-2303 |
|||
| Backplane Size（H × V × T） | 30 × 30 × 0.015mm | ||||
| Active Area Size（H × V） | 12.8 × 12.8mm | ||||
| Resolution（H*V） | 64*64 | ||||
| Pixel Size | 200 × 200μm | ||||
| TFT Size | W/L=100/10μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
 |
||||
| Pin Size | Space | 100μm | Width | 100μm | |
| Pitch | 200μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Dummy pin. • 132-134: Vcom • 135: Dummy pin. |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | SC-TF-A064-2303 | |||
| Backplane Size（H × V × T） | 30 × 30 × 0.015mm | |||
| Active Area Size（H × V） | 12.8 × 12.8mm | |||
| Resolution（H*V） | 64*64 | |||
| Pixel Size | 200 × 200μm | |||
| TFT Size | W/L=100/10μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 100μm | Width | 100μm |
| Pitch | 200μm | Length | 800μm | |
| Pin Function (from left to right) |
• 01-64: Data Read
• 65-128: Scan • 129-131: Dummy pin. • 132-134: Vcom • 135: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
 TFT Type：a-Si Array Size：12 × 12 Chip Model：SC-T-A012-2202 |
|||
| Backplane Size（H × V × T） | 17.52 × 23.32 × 0.5mm | ||||
| Active Area Size（H x V） | 12 × 12mm | ||||
| Resolution（H*V） | 12*12 | ||||
| Pixel Size | 1000 × 1000μm | ||||
| TFT Size | W/L=200/10μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
 |
||||
| Pin Size | Space | 200μm | Width | 300μm | |
| Pitch | 500μm | Length | 4000μm | ||
| Pin Function (from left to right) |
• 01-12: Data Read
• 13-24: Scan • 25-27: Vcom • 28-30: Dummy pin |
||||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 12 × 12 | |||
| Chip Model | SC-T-A012-2202 | |||
| Backplane Size（H × V × T） | 17.52 × 23.32 × 0.5mm | |||
| Active Area Size（H x V） | 12 × 12mm | |||
| Resolution（H*V） | 12*12 | |||
| Pixel Size | 1000 × 1000μm | |||
| TFT Size | W/L=200/10μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 200μm | Width | 300μm |
| Pitch | 500μm | Length | 4000μm | |
| Pin Function (from left to right) |
• 01-12: Data Read
• 13-24: Scan • 25-27: Vcom • 28-30: Dummy pin |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
Product Video
Sensing Series Comparison
 |
 |
 |
|
| Name | TruEbox 03MR（64×64） | TruEbox 03MR PRO（64×64） | TruEbox 03MR（128×128） |
| L × W × H | 170 x 151 x 170mm | 188 x 158 x 43mm | 258 x 173 x 48mm |
| Weight | 600g | 900g | 1400g |
| Power Supply | Battery | Battery | Battery |
| General |
• 64 channel pulse row signals, voltage range: -15 V~+15 V • 64 channels of current readout (positive-only), current range: 100 pA~200 nA • 2 channel DC bias: -15 V~+15 V |
• 64 channel pulse row signals, voltage range: -15 V~+15 V • 64 channels of current readout (positive & negative), current range: 100 pA~500 nA • 2 channel DC bias: -15 V~+13 V |
• 128 channel pulse row signals, voltage range: -15 V~+15 V
• 128 channels of current readout (positive), current range: 100 pA~800 nA • 2 channel DC bias: -15 V~+15 V |
| Communication | WIFI | USB | USB |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) | PC（Windows 10 or higher） | PC（Windows 10 or higher） |
| Current gear |
4 current gears (1nA/10nA/100nA/200nA) and 1 customize current gear |
4 current gears (1nA/10nA/100nA/500nA) and 1 customize current gear |
4 current gears (1nA/10nA/100nA/800nA) and 1 customize current gear |
| Imaging |
• Resolution: 64*64 • Grey level: 256 |
• Resolution: 64*64 • Grey level: 256 |
• Resolution: 128*128 • Grey level: 256 |
| Duration | >4 hours | >4 hours | >4 hours |
| Refresh Rate |
8.2Hz on 10nA, 64 × 64 data per frame |
60Hz on 100nA, 64 × 64 data per frame |
18Hz on 100nA, 128 × 128 data per frame |
|
|
|
|
| Name | TruEbox 03MR（64×64） | TruEbox 03MR PRO（64×64） |
| L × W × H | 170 x 151 x 170mm | 188 x 158 x 43mm |
| Weight | 600g | 900g |
| Power Supply | Battery | Battery |
| General |
• 64 channel pulse row signals, voltage range: -15V~+15V • 64 channels of current readout (positive-only), current range: 100pA~200nA • 2 channel DC bias: -15V~+15V |
• 64 channel pulse row signals, voltage range: -15V~+15V • 64 channels of current readout (positive & negative), current range: 100pA~500nA • 2 channel DC bias: -15V~+13V |
| Communication | WIFI | USB |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) | PC（Windows 10 or higher） |
| Current gear |
4 current gears (1nA/10nA/100nA/200nA) and 1 customize current gear |
4 current gears (1nA/10nA/100nA/500nA) and 1 customize current gear |
| Imaging |
• Resolution: 64 × 64 • Grey level: 256 |
• Resolution: 64 × 64 • Grey level: 256 |
| Duration | >4 hours | >4 hours |
| Refresh Rate |
8.2Hz on 10nA, 64 × 64 data per frame |
60Hz on 100nA, 64 × 64 data per frame |
