TruEbox 03MR (256×256) is mainly for collecting the current signal and imaging from the sensor array, which can support up to 256*256 definition.
The matrix readout system can provide 256 selecting signals, 4 DC bias voltages, and 256 current readout channels.
All current data will be transmitted to a PC terminal device through USB and converted to 256 grey level image based on the current intensity.
The matrix readout system is very suitable for light or pressure monitoring with compatible thin-film transistor (TFT) array chip.
TruEbox 03MR (256×256) is mainly for collecting the current signal and imaging from the sensor array, which can support up to 256*256 definition.
The matrix readout system can provide 256 selecting signals, 4 DC bias voltages, and 256 current readout channels. All current data will be transmitted to a PC terminal device through USB and converted to 256 grey level image based on the current intensity.
The matrix readout system is very suitable for light or pressure monitoring with compatible thin-film transistor (TFT) array chip.
Highlights
High pixel density
- Minimum pixel size: 50.8μm
High resolution imaging aquisition
- Supports 256×256 resolution
Representative Applications
Multiple optoelectronic detections
X-ray
Ultraviolet
Near-infrared
System Specifications
| Parameter | Specification |
 |
| Model | LZ-03AMR (256×256) | |
| L × W × H | 258 x 173 x 48mm | |
| Weight | 1400g | |
| Charging interface | DC005-2.5 | |
| General |
• 256 channel pulse row signals, voltage range: -15 V~+15 V
• 256 channels of current readout (positive-only), current range: 100 pA~150 nA • 4 channel DC bias: -15 V~+15 V |
|
| Communication | USB | |
| Terminal | PC（Windows 10 or higher） | |
| Current gear | 4 current gears (1nA/10nA/50nA/150nA) | |
| Imaging |
• Resolution: 256 × 256 • grey level: 256 |
|
| Duration | >8 hours | |
| Refresh Rate | 2Hz on 10nA, 256 × 256 data per frame | |
| Save | Selected data by user: .CSV & .MP4 |
| Parameter | Specification |
| Model | LZ-03AMR (256×256) |
| L × W × H | 258 x 173 x 48mm |
| Weight | 1400g |
| Charging interface | DC005-2.5 |
| General |
• 256 channel pulse row signals, voltage range: -15V~+15V
• 256 channels of current readout (positive-only), current range: 100pA~150nA • 4 channel DC bias: -15V~+15V |
| Communication | USB |
| Terminal | PC（Windows 10 or higher） |
| Current gear | 4 current gears (1nA/10nA/50nA/150nA) |
| Imaging |
• Resolution: 256*256 • grey level: 256 |
| Duration | >8 hours |
| Refresh Rate | 2Hz on 10nA, 256 × 256 data per frame |
| Save | Selected data by user: .CSV & .MP4 |
Chip Specifications
| Parameter | Specification |
 TFT Type：IGZO Array Size：256 × 256 Chip Model：SC-T-G256-2304（GES2） |

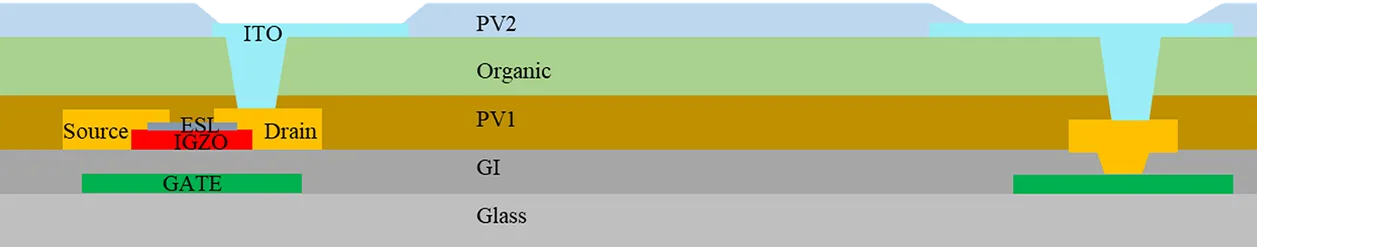

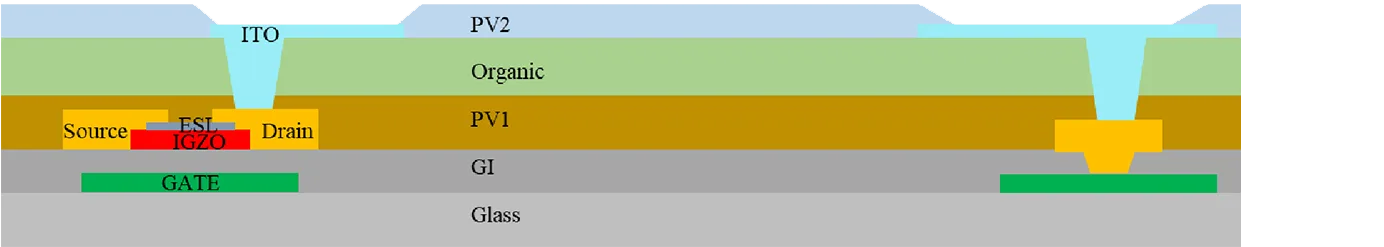

|||
| Backplane Size（H × V × T） | 44.64 x 46.64 x 0.5mm | ||||
| Active Area Size（H × V） | 22 x 22mm | ||||
| Resolution（H*V） | 256*256 | ||||
| Pixel Size | 85 x 85μm | ||||
| TFT Size | W/L=16/12μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
 |
||||
| Pin Size | Space | 40μm | Width | 70μm | |
| Pitch | 110μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 01-06: Dummy pin.
• 07-08: Vcom • 09: Vcom • 10-13 & 19: Scan 1 • 14-18 & 20-22: Dummy pin. |
• 23-278: Data Read • 279-331: Dummy pin. • 332: Vcom • 333-334: Vcom • 335-336: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | IGZO | |||
| Array Size | 256 × 256 | |||
| Chip Model | SC-T-G256-2304（GES2） | |||
| Backplane Size（H × V × T） | 44.64 x 46.64 x 0.5mm | |||
| Active Area Size（H × V） | 22 x 22mm | |||
| Resolution（H*V） | 256*256 | |||
| Pixel Size | 85 x 85μm | |||
| TFT Size | W/L=16/12μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 40μm | Width | 70μm |
| Pitch | 110μm | Length | 800μm | |
| Pin Function (from left to right) |
• 01-06: Dummy pin.
• 07-08: Vcom • 09: Vcom • 10-13 & 19: Scan 1 • 14-18 & 20-22: Dummy pin. |
• 23-278: Data Read • 279-331: Dummy pin. • 332: Vcom • 333-334: Vcom • 335-336: Dummy pin. |
||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
 TFT Type：IGZO Array Size：256 × 256 Chip Model：SC-T-G256-2305（GES3） The chip corresponds to Type B: GOA drive mode. |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | ||||
| Active Area Size（H × V） | 13 × 13mm | ||||
| Resolution（H*V） | 256*256 | ||||
| Pixel Size | 50.8 × 50.8μm | ||||
| TFT Size | W/L=12/10μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
 |
||||
| Pin Size | Space | 40μm | Width | 70μm | |
| Pitch | 110μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 01-06: Dummy pin.
• 07-08: Vcom • 09: Vcom • 10-13 & 19: Scan 1 • 14-18 & 20-22: Dummy pin. |
• 23-278: Data Read
• 279-331: Dummy pin. • 332: Vcom • 333-334: Vcom • 335-336: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | IGZO | |||
| Array Size | 256 × 256 | |||
| Chip Model |
SC-T-G256-2305（GES3） *The chip corresponds to Type B: GOA drive mode. |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | |||
| Active Area Size（H × V） | 13 × 13mm | |||
| Resolution（H*V） | 256*256 | |||
| Pixel Size | 50.8 × 50.8μm | |||
| TFT Size | W/L=12/10μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 40μm | Width | 70μm |
| Pitch | 110μm | Length | 800μm | |
| Pin Function (from left to right) |
• 01-06: Dummy pin.
• 07-08: Vcom • 09: Vcom • 10-13 & 19: Scan 1 • 14-18 & 20-22: Dummy pin. |
• 23-278: Data Read
• 279-331: Dummy pin. • 332: Vcom • 333-334: Vcom • 335-336: Dummy pin. |
||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
 TFT Type：IGZO Array Size：256 × 256 Chip Model：SC-T-G256-2401（GHS1） The chip corresponds to Type A: Gate Driver IC drive mode. |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | ||||
| Active Area Size（H × V） | 32 × 32mm | ||||
| Resolution（H*V） | 256*256 | ||||
| Pixel Size | 126 × 126μm | ||||
| TFT Size | W/L=24/12μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
 |
||||
| Pin Size | Space | 50μm | Width | 70μm | |
| Pitch | 120μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 01-06: Dummy pin.
• 07-08: Vcom • 09: Vcom • 10-13 & 19: Scan 1 • 14-18 & 20-22: Dummy pin. • 23-278: Data Read |
• 279-290: Dummy pin.
• 291-331: Scan 2 • 332: Vcom • 333-334: Vcom • 335-336: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | IGZO | |||
| Array Size | 256 × 256 | |||
| Chip Model |
SC-T-G256-2401（GHS1） *The chip corresponds to Type A: Gate Driver IC drive mode. |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | |||
| Active Area Size（H × V） | 32 × 32mm | |||
| Resolution（H*V） | 256*256 | |||
| Pixel Size | 126 × 126μm | |||
| TFT Size | W/L=24/12μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 50μm | Width | 70μm |
| Pitch | 120μm | Length | 800μm | |
| Pin Function (from left to right) |
• 01-06: Dummy pin.
• 07-08: Vcom • 09: Vcom • 10-13 & 19: Scan 1 • 14-18 & 20-22: Dummy pin. • 23-278: Data Read |
• 279-290: Dummy pin.
• 291-331: Scan 2 • 332: Vcom • 333-334: Vcom • 335-336: Dummy pin. |
||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
 TFT Type：IGZO Array Size：256 × 256 Chip Model：SC-T-G256-2402（GHS2） The chip corresponds to Type A: Gate Driver IC drive mode. |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | ||||
| Active Area Size（H × V） | 22 × 22mm | ||||
| Resolution（H*V） | 256*256 | ||||
| Pixel Size | 85 × 85μm | ||||
| TFT Size | W/L=16/12μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
 |
||||
| Pin Size | Space | 50μm | Width | 70μm | |
| Pitch | 120μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 01-06: Dummy pin.
• 07-08: Vcom • 09: Vcom • 10-13 & 19: Scan 1 • 14-18 & 20-22: Dummy pin. • 23-278: Data Read |
• 279-290: Dummy pin.
• 291-331: Scan 2 • 332: Vcom • 333-334: Vcom • 335-336: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | IGZO | |||
| Array Size | 256 × 256 | |||
| Chip Model |
SC-T-G256-2402（GHS2） *The chip corresponds to Type A: Gate Driver IC drive mode. |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | |||
| Active Area Size（H × V） | 22 × 22mm | |||
| Resolution（H*V） | 256*256 | |||
| Pixel Size | 85 × 85μm | |||
| TFT Size | W/L=16/12μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 50μm | Width | 70μm |
| Pitch | 120μm | Length | 800μm | |
| Pin Function (from left to right) |
• 01-06: Dummy pin.
• 07-08: Vcom • 09: Vcom • 10-13 & 19: Scan 1 • 14-18 & 20-22: Dummy pin. • 23-278: Data Read |
• 279-290: Dummy pin.
• 291-331: Scan 2 • 332: Vcom • 333-334: Vcom • 335-336: Dummy pin. |
||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
 TFT Type：IGZO Array Size：256 × 256 Chip Model：SC-T-G256-2403（GHS3） The chip corresponds to Type A: Gate Driver IC drive mode. |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | ||||
| Active Area Size（H × V） | 13 × 13mm | ||||
| Resolution（H*V） | 256*256 | ||||
| Pixel Size | 50.8 × 50.8μm | ||||
| TFT Size | W/L=12/10μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
 |
||||
| Pin Size | Space | 50μm | Width | 70μm | |
| Pitch | 120μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 01-06: Dummy pin.
• 07-08: Vcom • 09: Vcom • 10-13 & 19: Scan 1 • 14-18 & 20-22: Dummy pin. • 23-278: Data Read |
• 279-290: Dummy pin.
• 291-331: Scan 2 • 332: Vcom • 333-334: Vcom • 335-336: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | IGZO | |||
| Array Size | 256 × 256 | |||
| Chip Model |
SC-T-G256-2403（GHS3） *The chip corresponds to Type A: Gate Driver IC drive mode. |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | |||
| Active Area Size（H × V） | 13 × 13mm | |||
| Resolution（H*V） | 256*256 | |||
| Pixel Size | 50.8 × 50.8μm | |||
| TFT Size | W/L=12/10μm | |||
| Pixel Structure | 1T0C | |||
| Section |
|
|||
| Pin Size | Space | 50μm | Width | 70μm |
| Pitch | 120μm | Length | 800μm | |
| Pin Function (from left to right) |
• 01-06: Dummy pin.
• 07-08: Vcom • 09: Vcom • 10-13 & 19: Scan 1 • 14-18 & 20-22: Dummy pin. • 23-278: Data Read |
• 279-290: Dummy pin.
• 291-331: Scan 2 • 332: Vcom • 333-334: Vcom • 335-336: Dummy pin. |
||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
| Parameter | Specification |
 TFT Type：IGZO Array Size：256 × 256 Chip Model：SC-T-G256-2404（GHS4） ①Bipolar current readout ② The chip corresponds to Type A: Gate Driver IC drive mode ③ The effective readout range of photodiode current: ±5nA |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | ||||
| Active Area Size（H × V） | 32 × 32mm | ||||
| Resolution（H*V） | 256*256 | ||||
| Pixel Size | 126 × 126μm | ||||
| TFT Size | DTFT: T1 W/L=10/20μm / Switch TFT: T2/T3/T4 W/L=10/10μm | ||||
| Pixel Structure | 4T1C | ||||
| Section |
 |
||||
| Pin Size | Space | 50μm | Width | 70μm | |
| Pitch | 120μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 01-06: Dummy pin.
• 07-08: Vcom • 09: Vcom • 10-13 & 19: Scan 1 • 14-18 & 20-22: Dummy pin. • 23-278: Data Read • 279-282 & 284-285 & 289-290: Dummy pin. • 283: VDD |
• 284: VIN
• 287: SA • 288: SB • 291-331: Scan 2 • 332: Vcom • 333-334: Vcom • 335-336: Dummy pin. |
|||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | IGZO | |||
| Array Size | 256 × 256 | |||
| Chip Model |
SC-T-G256-2404（GHS4） * ①Bipolar current readout ②The chip corresponds to Type A: Gate Driver IC drive mode ③The effective readout range of photodiode current: ±5nA |
|||
| Backplane Size（H × V × T） | 44.64 × 46.64 × 0.5mm | |||
| Active Area Size（H × V） | 32 × 32mm | |||
| Resolution（H*V） | 256*256 | |||
| Pixel Size | 126 × 126μm | |||
| TFT Size | DTFT: T1 W/L=10/20μm / Switch TFT: T2/T3/T4 W/L=10/10μm | |||
| Pixel Structure | 4T1C | |||
| Section |
|
|||
| Pin Size | Space | 50μm | Width | 70μm |
| Pitch | 120μm | Length | 800μm | |
| Pin Function (from left to right) |
• 01-06: Dummy pin.
• 07-08: Vcom • 09: Vcom • 10-13 & 19: Scan 1 • 14-18 & 20-22: Dummy pin. • 23-278: Data Read • 279-282 & 284-285 & 289-290: Dummy pin. • 283: VDD |
• 284: VIN
• 287: SA • 288: SB • 291-331: Scan 2 • 332: Vcom • 333-334: Vcom • 335-336: Dummy pin. |
||
| Potential Applications | Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
Product Video
Sensing Series Comparison
 |
 |
 |
|
| Name | TruEbox 03MR（128×128） | TruEbox 03MR（256×256） | TruEbox 03MR（1K×1K） |
| L × W × H | 258 x 173 x 48mm | 258 x 173 x 48mm | 329 x 173 x 30mm |
| Weight | 1400g | 1400g | 1500g |
| Power Supply | Battery | Battery | Battery |
| General |
• 128 channel pulse row signals, voltage range: -15 V~+15 V • 128 channels of current readout (positive), current range: 100 pA~800 nA • 2 channel DC bias: -15 V~+15 V |
• 256 channel pulse row signals, voltage range: -15 V~+15 V • 256 channels of current readout (positive-only), current range: 100 pA~150 nA • 4 channel DC bias: -15 V~+15 V |
• 1024 channel pulse row signals, voltage range: -15 V~+15 V • 1024 channels of current readout (positive-only), current range: 100 pA~150 nA •2 channel DC bias: -15 V~+15 V |
| Communication | USB | USB | USB |
| Terminal | PC（Windows 10 or higher） | PC（Windows 10 or higher） | PC（Windows 10 or higher） |
| Current gear |
4 current gears (1nA/10nA/100nA/800nA) and 1 customize current gear |
4 current gears (1nA/10nA/50nA/150nA) | 4 current gears (1nA/10nA/50nA/150nA) |
| Imaging |
• Resolution: 128*128
• Grey level: 256 |
• Resolution: 256*256
• Grey level: 256 |
• Resolution: 1024*1024 • Grey level: 256 |
| Duration | >4 hours | >8 hours | >8 hours |
| Refresh Rate | 18Hz on 100nA, 128 × 128 data per frame | 2Hz on 10nA, 256 × 256 data per frame | 0.5Hz on 150nA, 1024 × 1024 data per frame |
|
|
|
|
| Name | TruEbox 03MR（128×128） | TruEbox 03MR（256×256） |
| L × W × H | 258 x 173 x 48mm | 258 x 173 x 48mm |
| Weight | 1400g | 1400g |
| Power Supply | Battery | Battery |
| General |
• 128 channel pulse row signals, voltage range: -15V~+15V • 128 channels of current readout (positive), current range: 100pA~800nA • 2 channel DC bias: -15V~+15V |
• 256 channel pulse row signals, voltage range: -15V~+15V • 256 channels of current readout (positive-only), current range: 100pA~150nA • 4 channel DC bias: -15V~+15V |
| Communication | USB | USB |
| Terminal | PC（Windows 10 or higher） | PC（Windows 10 or higher） |
| Current gear |
4 current gears (1nA/10nA/100nA/800nA) and 1 customize current gear |
4 current gears (1nA/10nA/50nA/150nA) |
| Imaging |
• Resolution: 128*128
• Grey level: 256 |
• Resolution: 256*256
• Grey level: 256 |
| Duration | >4 hours | >8 hours |
| Refresh Rate | 18Hz on 100nA, 128 × 128 data per frame | 2Hz on 10nA, 256 × 256 data per frame |
