TruEbox 03MR (256×256) is mainly for collecting the current signal and imaging from the sensor array,
which can support up to 1024 × 1024 definition.
The matrix readout system can provide 1024 selecting signals, 2 DC bias voltages, and 1024 current readout channels.
All current data will be transmitted to a PC terminal device through USB and converted to 256 grey level image based on the current intensity.
The matrix readout system is very suitable for light or pressure monitoring with compatible thin-film transistor (TFT) array chip.
TruEbox 03MR (256×256) is mainly for collecting the current signal and imaging from the sensor array, which can support up to 1024 × 1024 definition.
The matrix readout system can provide 1024 selecting signals, 2 DC bias voltages, and 1024 current readout channels. All current data will be transmitted to a PC terminal device through USB and converted to 256 grey level image based on the current intensity.
The matrix readout system is very suitable for light or pressure monitoring with compatible thin-film transistor (TFT) array chip.
Highlights
Higher detection resolution
- Support 1024*1024 resolution
Large-area
- Imaging area of 8.7 × 8.7 cm
Representative Applications
Multiple optoelectronic detections
X-ray
Ultraviolet
Near-infrared
System Specifications
| Parameter | Specification |
 |
| Model | LZ-03AMR (1K×1K) | |
| L × W × H | 329 x 173 x 30mm | |
| Weight | 1500g | |
| Charging interface | DC005-2.5 | |
| General |
• 1024 channel pulse row signals, voltage range: -15 V~+15 V
• 1024 channels of current readout (positive-only), current range: 100 pA~150 nA • 2 channel DC bias: -15 V~+15 V |
|
| Communication | USB | |
| Terminal | PC（Windows 10 or higher） | |
| Current gear | 4 current gears (1nA/10nA/50nA/150nA) | |
| Imaging |
• Resolution: 1024 × 1024 • grey level: 256 |
|
| Save | Selected data by user: .CSV & .MP4 | |
| Duration | >8 hours | |
| Refresh Rate | 0.5Hz on 150nA, 1024 × 1024 data per frame |
| Parameter | Specification |
| Model | LZ-03AMR (1K×1K) |
| L × W × H | 329 x 173 x 30mm |
| Weight | 1500g |
| Charging interface | DC005-2.5 |
| General |
• 1024 channel pulse row signals, voltage range: -15V~+15V
• 1024 channels of current readout (positive-only), current range: 100pA~150nA • 2 channel DC bias: -15V~+15V |
| Communication | USB |
| Terminal | PC（Windows 10 or higher） |
| Current gear | 4 current gears (1nA/10nA/50nA/150nA) |
| Imaging |
• Resolution: 1024*1024 • grey level: 256 |
| Save | Selected data by user: .CSV & .MP4 |
| Duration | >8 hours |
| Refresh Rate | 0.5Hz on 150nA, 1024 × 1024 data per frame |
Chip Specifications
| Parameter | Specification |
 TFT Type：IGZO Array Size：1024 × 1024 Chip Model：SC-T-G1024-2501 (GLS6) |
|||
| Backplane Size（H × V × T） | 110 x 110 x 0.5mm | ||||
| Active Area Size（H × V） | 87 x 87mm | ||||
| Resolution（H*V） | 1024*1024 | ||||
| Pixel Size | 85 x 85μm | ||||
| TFT Size | W/L=16/12μm | ||||
| Pixel Structure | 1T0C | ||||
| Section |
 |
||||
| Pin Size | Space | 50μm | Width | 70μm | |
| Pitch | 120μm | Length | 952μm | ||
| Pin Function (from left to right) |
• 01-02：Bonding Test
• 03-05：Gate IC Test • 10-13：CK1~4 • 14、15、16：VGH、VGL1、VGL • 18-21：Mux1~4 • 25-27、30-33：Gate IC Drive |
• 37-292： • Data1~Data256 • 304: Vcom • 305-306：VSS • 307-308：Bonding Test • *The remaining pins are all dummy pins. |
|||
| Potential Applications | Potential Applications Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | ||||
| Parameter | Specification | |||
| TFT Type | IGZO | |||
| Array Size | 1024 × 1024 | |||
| Chip Model | SC-T-G1024-2501 (GLS6) | |||
| Backplane Size（H × V × T） | 110 x 110 x 0.5mm | |||
| Active Area Size（H × V） | 87 x 87mm | |||
| Resolution（H*V） | 1024*1024 | |||
| Pixel Size | 85 x 85μm | |||
| TFT Size | W/L=16/12μm | |||
| Pixel Structure | 1T0C | |||

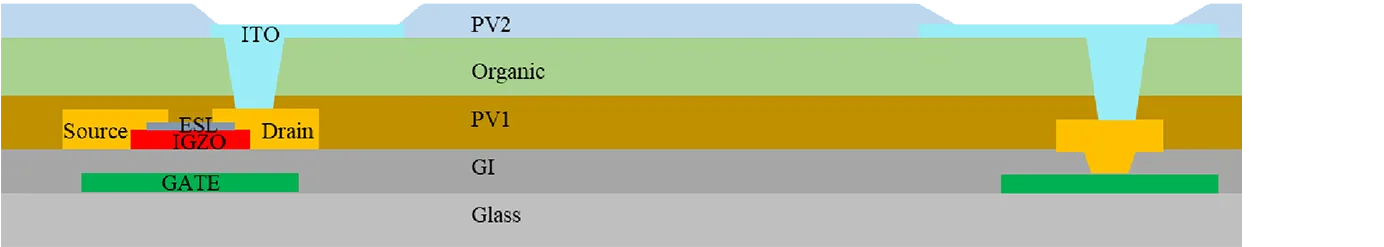

| Section |
|
|||
| Pin Size | Space | 50μm | Width | 70μm |
| Pitch | 120μm | Length | 952μm | |
| Pin Function (from left to right) |
• 01-02：Bonding Test
• 03-05：Gate IC Test • 10-13：CK1~4 • 14、15、16：VGH、VGL1、VGL • 18-21：Mux1~4 • 25-27、30-33：Gate IC Drive |
• 37-292： • Data1~Data256 • 304: Vcom • 305-306：VSS • 307-308：Bonding Test • *The remaining pins are all dummy pins. |
||
| Potential Applications | Potential Applications Perovskite/organic photodetectors, pressure sensors, electrowetting displays, electrowetting microfluidics, etc. | |||
Product Video
Sensing Series Comparison
 |
 |
 |
|
| Name | TruEbox 03MR（128×128） | TruEbox 03MR（256×256） | TruEbox 03MR（1K×1K） |
| L × W × H | 258 x 173 x 48mm | 258 x 173 x 48mm | 329 x 173 x 30mm |
| Weight | 1400g | 1400g | 1500g |
| Power Supply | Battery | Battery | Battery |
| General |
• 128 channel pulse row signals, voltage range: -15 V~+15 V • 128 channels of current readout (positive), current range: 100 pA~800 nA • 2 channel DC bias: -15 V~+15 V |
• 256 channel pulse row signals, voltage range: -15 V~+15 V • 256 channels of current readout (positive-only), current range: 100 pA~150 nA • 4 channel DC bias: -15 V~+15 V |
• 1024 channel pulse row signals, voltage range: -15 V~+15 V • 1024 channels of current readout (positive-only), current range: 100 pA~150 nA •2 channel DC bias: -15 V~+15 V |
| Communication | USB | USB | USB |
| Terminal | PC（Windows 10 or higher） | PC（Windows 10 or higher） | PC（Windows 10 or higher） |
| Current gear |
4 current gears (1nA/10nA/100nA/800nA) and 1 customize current gear |
4 current gears (1nA/10nA/50nA/150nA) | 4 current gears (1nA/10nA/50nA/150nA) |
| Imaging |
• Resolution: 128* 128
• Grey level: 256 |
• Resolution: 256*256
• Grey level: 256 |
• Resolution: 1024*1024 • Grey level: 256 |
| Duration | >4 hours | >8 hours | >8 hours |
| Refresh Rate | 18Hz on 100nA, 128 × 128 data per frame | 2Hz on 10nA, 256 × 256 data per frame | 0.5Hz on 150nA, 1024 × 1024 data per frame |
|
|
|
|
| Name | TruEbox 03MR（256×256） | TruEbox 03MR（1K×1K） |
| L × W × H | 258 x 173 x 48mm | 329 x 173 x 30mm |
| Weight | 1400g | 1500g |
| Power Supply | Battery | Battery |
| General |
• 256 channel pulse row signals, voltage range: -15V~+15V • 256 channels of current readout (positive-only), current range: 100pA~150nA • 4 channel DC bias: -15V~+15V |
• 1024 channel pulse row signals, voltage range: -15V~+15V • 1024 channels of current readout (positive-only), current range: 100pA~150nA •2 channel DC bias: -15V~+15V |
| Communication | USB | USB |
| Terminal | PC（Windows 10 or higher） | PC（Windows 10 or higher） |
| Current gear | 4 current gears (1nA/10nA/50nA/150nA) | 4 current gears (1nA/10nA/50nA/150nA) |
| Imaging |
• Resolution: 256*256
• Grey level: 256 |
• Resolution: 1024*1024 • Grey level: 256 |
| Duration | >8 hours | >8 hours |
| Refresh Rate | 2Hz on 10nA, 256 × 256 data per frame | 0.5Hz on 150nA, 1024 × 1024 data per frame |
