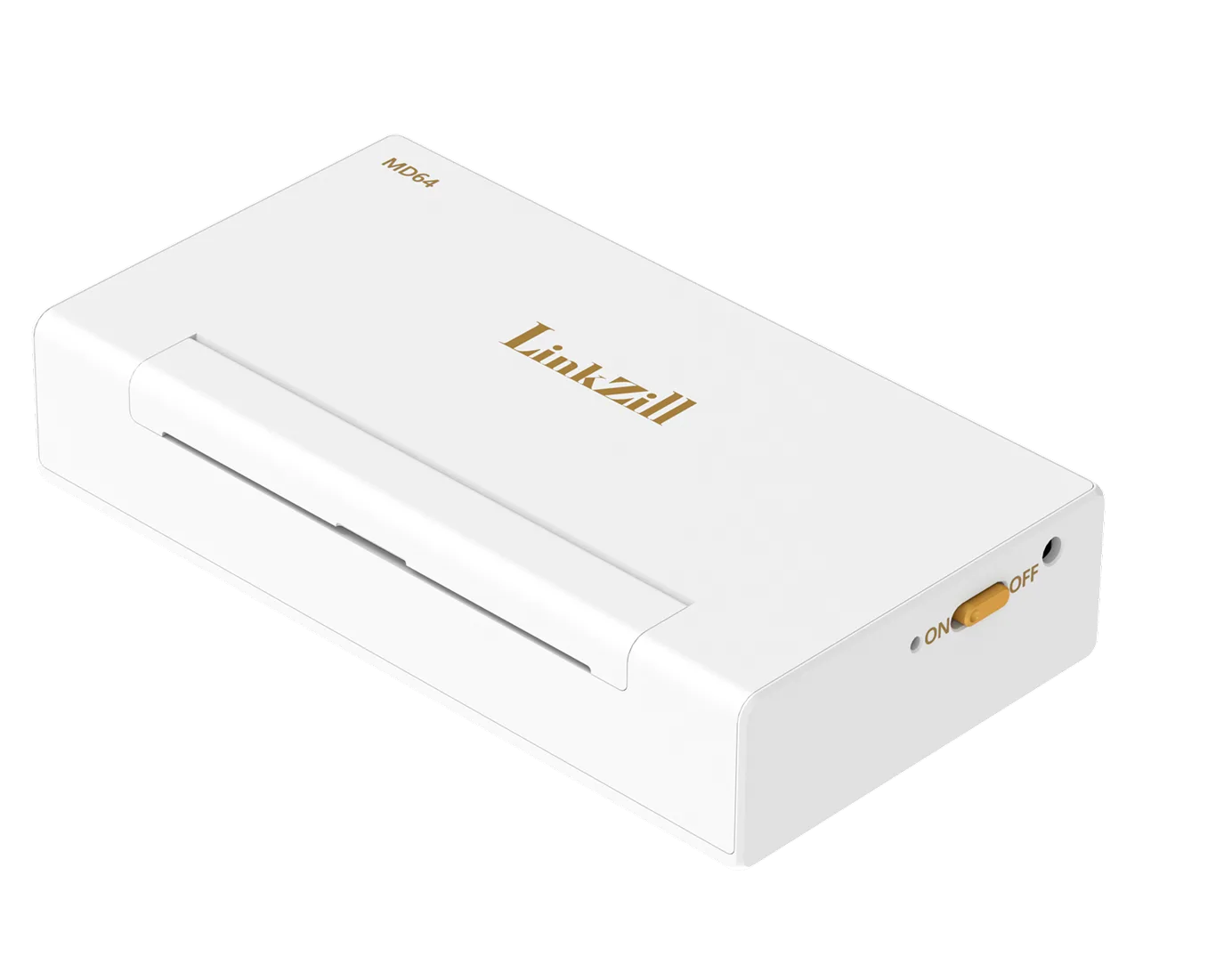

TruEbox 04MD (64×64) is mainly used for signal driving of array display devices and supports up to 64*64 resolution array driving.
It can provide 64 rows of select signals, 64 columns of feed signals, and 2 DC bias signals.
It can customize the display of the array display device through the WiFi module, the Android mobile terminal,
and the self-designed APP that transmits the compiled array signal.
TruEbox 04MD (64×64) is mainly used for signal driving of array display devices and supports up to 64*64 resolution array driving.
It can provide 64 rows of select signals, 64 columns of feed signals, and 2 DC bias signals.
It can customize the display of the array display device through the WiFi module, the Android mobile terminal, and the self-designed APP that transmits the compiled array signal.
Highlights
Simplify device fabrication
- Support standard techniques, including spin-coating, blade-coating
Backward compatible with 16×16 array chips
- Multiple chip sizes available
Compatible with flexible array chips
- Suitable for flexible display applications
Representative Applications
Multiple novel display device
QLED
OLED
PeLED
System Specifications
| Parameter | Specification |
 |
| Model | LZ-04AMD (64 × 64) | |
| L × W × H | 205 × 110 × 35mm | |
| Weight | 600g | |
| Charging interface | DC002-1.3 | |
| General |
• 64 channel pulse row signals, voltage range: -15 V~+15 V • 64 channel pulse column signals: voltage range: -10 V~+10 V • 2 channel DC bias: -15 V~+15 V |
|
| Communication | Bluetooth | |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) | |
| Display form | Letters, checkerboard, all bright, all dark, bitmap | |
| Display specification | 64 × 64 on off display | |
| Duration | >4 hours | |
| Refresh Rate | 60Hz |
| Parameter | Specification |
| Model | LZ-04AMD (64 × 64) |
| L × W × H | 205 × 110 × 35mm |
| Weight | 600g |
| Charging interface | DC002-1.3 |
| General |
• 64 channel pulse row signals, voltage range: -15V~+15V • 64 channel pulse column signals: voltage range: -10V~+10V • 2 channel DC bias: -15V~+15V |
| Communication | Bluetooth |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) |
| Display form | Letters, checkerboard, all bright, all dark, bitmap |
| Display specification | 64 × 64 on off display |
| Duration | >4 hours |
| Refresh Rate | 60Hz |
Chip Specifications
| Parameter | Specification |

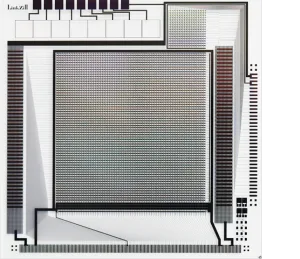

 TFT Type：a-Si Array Size：64 × 64 Chip Model：LC-T-A064-2201 |
|||
| Backplane Size (H × V × T) | 30 x 30 x 0.5mm | ||||
| Active Area Size (H × V) | 17.28 x 17.28mm | ||||
| Resolution (H*V) | 64*64 | ||||
| Pixel Size | 270 x 270μm | ||||
| TFT Size | TFT1 W/L=54/5mm；TFT2 W/L=960/5μm | ||||
| Pixel Structure | 2T1C | ||||

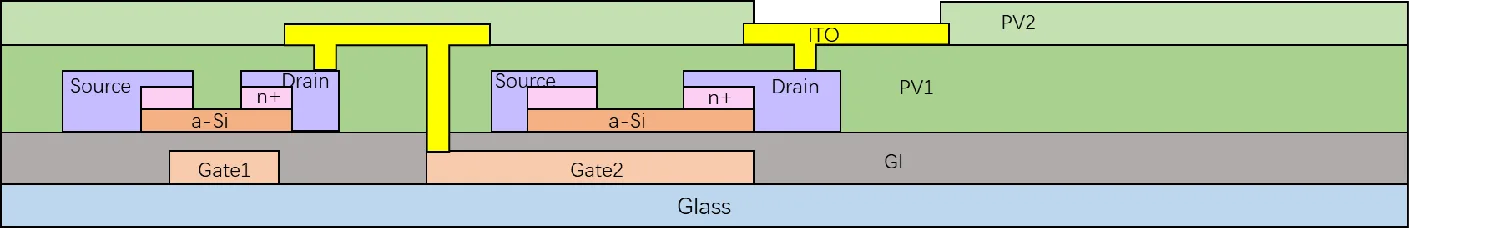

| Pixel Section |
 |
||||
| Pin Size | Space | 60μm | Width | 100μm | |
| Pitch | 160μm | Length | 1000μm | ||
| Pin Function (from left to right) |
• 001-003: Dummy pin.
• 004-007: Vcom • 008-011: Dummy pin. • 012-013: VDD • 014-077: Scan |
• 078-079：VDD
• 080-143：Data Read • 144-147：VDD • 148-151：Dummy pin. • 152-155：Vcom • 156-160：Dummy pin. |
|||
| Potential Applications | OLED, QLED, Perovskite LED, LCD, Electronic Paper, etc. | ||||
| 项目 | 规格 | |||
| 芯片种类 | a-Si | |||
| 芯片阵列数 | 64 × 64 | |||
| 芯片型号 | LC-T-A064-2201 | |||
| 背板尺寸（H × V × T） | 30 x 30 x 0.5mm | |||
| 有源区尺寸（H × V） | 17.28 x 17.28mm | |||
| 分辨率（H*V） | 64*64 | |||
| 像素大小 | 270 x 270μm | |||
| TFT尺寸 | TFT1 W/L=54/5mm；TFT2 W/L=960/5μm | |||
| 像素结构 | 2T1C | |||
| 剖面图 |
|
|||
| Pin尺寸 | Space | 60μm | Width | 100μm |
| Pitch | 160μm | Length | 1000μm | |
| Pin序（从左至右） |
• 001-003：空
• 004-007：共电极 • 008-011：空 • 012-013：VDD • 014-077：行选 |
• 078-079：VDD
• 080-143：列选 • 144-147：VDD • 148-151：空 • 152-155：共电极 • 156-160：空 |
||
| 潜在应用范围 | OLED、QLED、Perovskite LED、电子纸显示、液晶显示等 | |||
| Parameter | Specification |

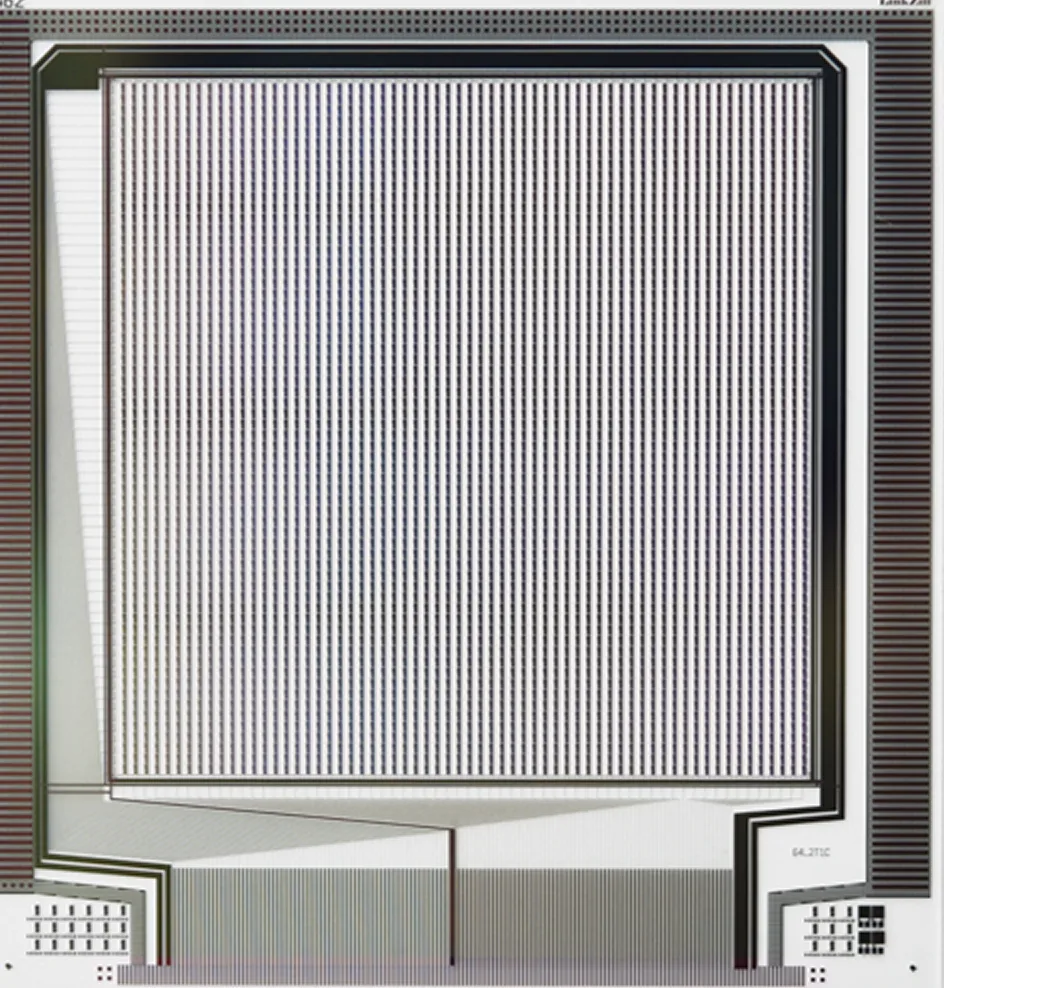

 TFT Type：a-Si Array Size：64 × 64 Chip Model：LC-T-A064-2202 |
|||
| Backplane Size (H × V × T) | 44.64 × 46.64 × 0.5mm | ||||
| Active Area Size (H × V) | 32 × 32mm | ||||
| Resolution (H*V) | 64*64 | ||||
| Pixel Size | 500 × 500μm | ||||
| TFT Size | TFT1 W/L=200/6μm；TFT2 W/L=4500/7μm | ||||
| Pixel Structure | 2T1C | ||||
| Pixel Section |
 |
||||
| Pin Size | Space | 100μm | Width | 100μm | |
| Pitch | 200μm | Length | 1000μm | ||
| Pin Function (from left to right) |
• 001-003：Dummy pin.
• 004-007：Vcom • 008-009：Dummy pin. • 010-011：VDD • 012-013：ESD • 014-077：Scan |
• 078-079：ESD
• 080-143：Data Read • 144-147：ESD • 148-149：VDD • 150-151：Dummy pin. • 152-155：Vcom • 156-160：Dummy pin. |
|||
| 潜在应用范围 | OLED、QLED、Perovskite LED、电子纸显示、液晶显示等 | ||||
| 项目 | 规格 | |||
| 芯片种类 | a-Si | |||
| 芯片阵列数 | 64 × 64 | |||
| 芯片型号 | LC-T-A064-2202 | |||
| 背板尺寸（H × V × T） | 44.64 × 46.64 × 0.5mm | |||
| 有源区尺寸（H × V） | 32 × 32mm | |||
| 背板尺寸（H × V × T） | 64*64 | |||
| 有源区尺寸（H × V） | 500 × 500μm | |||
| 分辨率（H*V） | TFT1 W/L=200/6μm；TFT2 W/L=4500/7μm | |||
| 像素大小 | 2T1C | |||
| 剖面图 |
|
|||
| Pin尺寸 | Space | 100μm | Width | 100μm |
| Pitch | 200μm | Length | 1000μm | |
| Pin序（从左至右） |
• 001-003：空
• 004-007：共电极 • 008-009：空 • 010-011：VDD • 012-013：ESD • 014-077：行选 |
• 078-079：ESD
• 080-143：列选 • 144-147：ESD • 148-149：VDD • 150-151：空 • 152-155：共电极 • 156-160：空 |
||
| 潜在应用范围 | OLED、QLED、Perovskite LED、电子纸显示、液晶显示等 | |||
| Parameter | Specification |

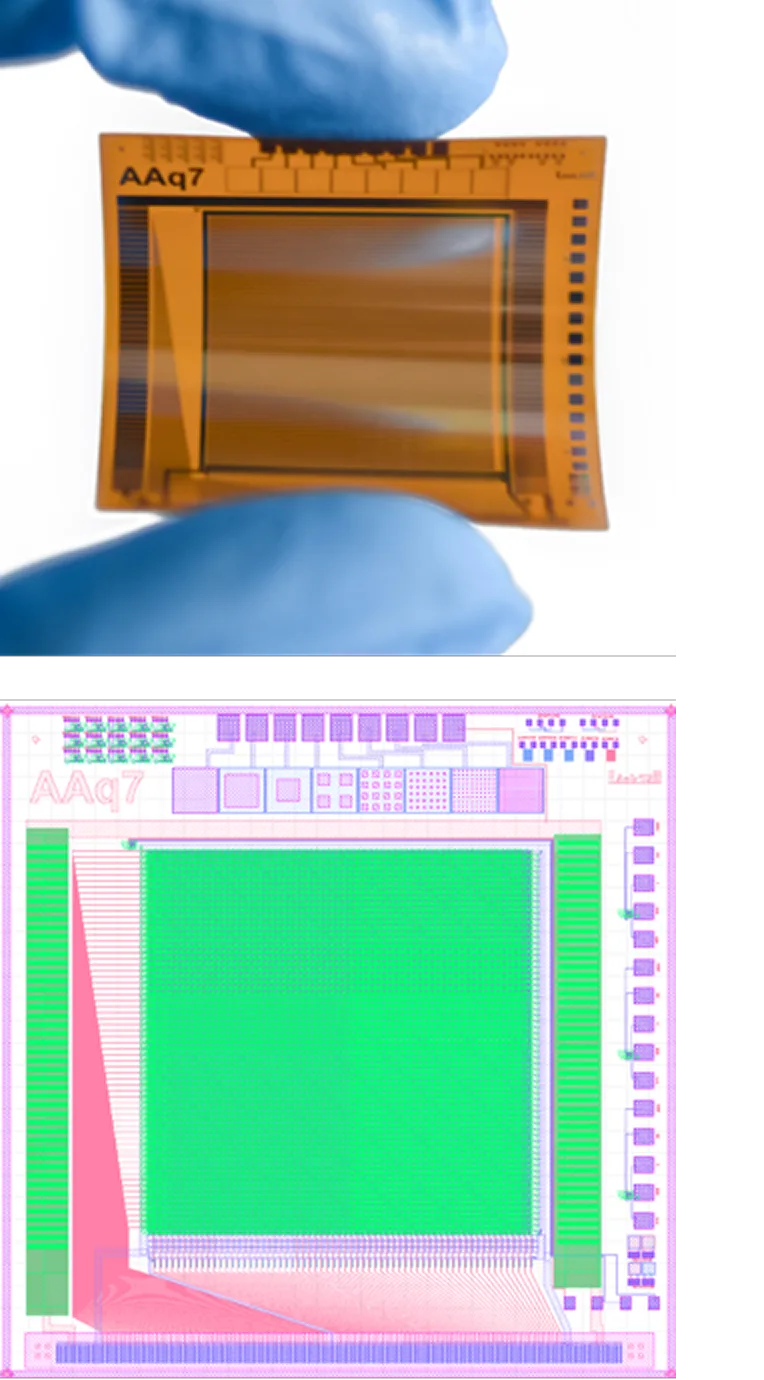

 TFT Type：a-Si Array Size：64 × 64 Chip Model：LC-TF-A064-2301 |
|||
| Backplane Size (H × V × T) | 30 × 30 × 0.015mm | ||||
| Active Area Size (H × V) | 17.28 × 17.28mm | ||||
| Resolution (H*V) | 64*64 | ||||
| Pixel Size | 270 × 270μm | ||||
| TFT Size | TFT1 W/L=54/5μm；TFT2 W/L=960/5μm | ||||
| Pixel Structure | 2T1C | ||||

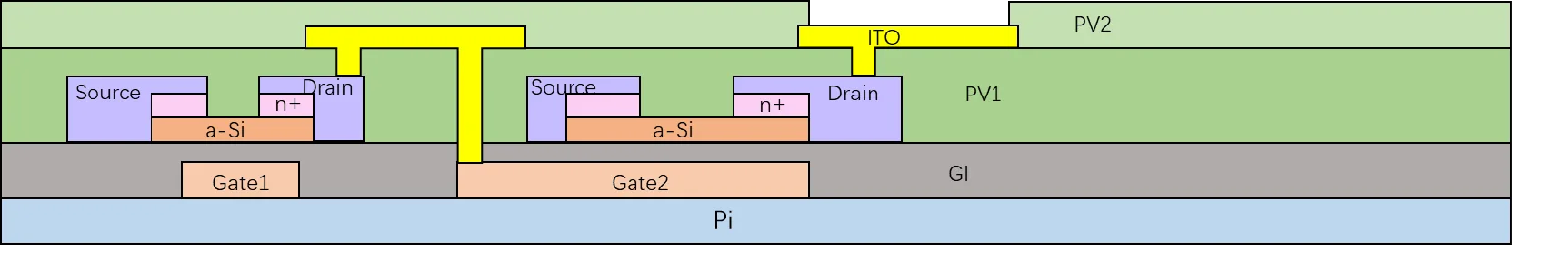

| Pixel Section |
 |
||||
| Pin Size | Space | 60μm | Width | 100μm | |
| Pitch | 160μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 001-003：Dummy pin.
• 004-007：Vcom • 008-011：Dummy pin. • 012-013：VDD • 014-077：Scan |
• 078-079：VDD
• 080-143：Data Read • 144-147：VDD • 148-151：Dummy pin. • 152-155：Vcom • 156-160：Dummy pin. |
|||
| Potential Applications | OLED, QLED, Perovskite LED, LCD, Digital Paper, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | LC-TF-A064-2301 | |||
| Backplane Size (H × V × T) | 30 × 30 × 0.015mm | |||
| Active Area Size (H × V) | 17.28 × 17.28mm | |||
| Resolution (H*V) | 64*64 | |||
| Pixel Size | 270 × 270μm | |||
| TFT Size | TFT1 W/L=54/5μm；TFT2 W/L=960/5μm | |||
| Pixel Structure | 2T1C | |||
| Pixel Section |
|
|||
| Pin Size | Space | 60μm | Width | 100μm |
| Pitch | 160μm | Length | 800μm | |
| Pin Function (from left to right) |
• 001-003：Dummy pin.
• 004-007：Vcom • 008-011：Dummy pin. • 012-013：VDD • 014-077：Scan |
• 078-079：VDD
• 080-143：Data Read • 144-147：VDD • 148-151：Dummy pin. • 152-155：Vcom • 156-160：Dummy pin. |
||
| Potential Applications | OLED, QLED, Perovskite LED, LCD, Digital Paper, etc. | |||
| Parameter | Specification |

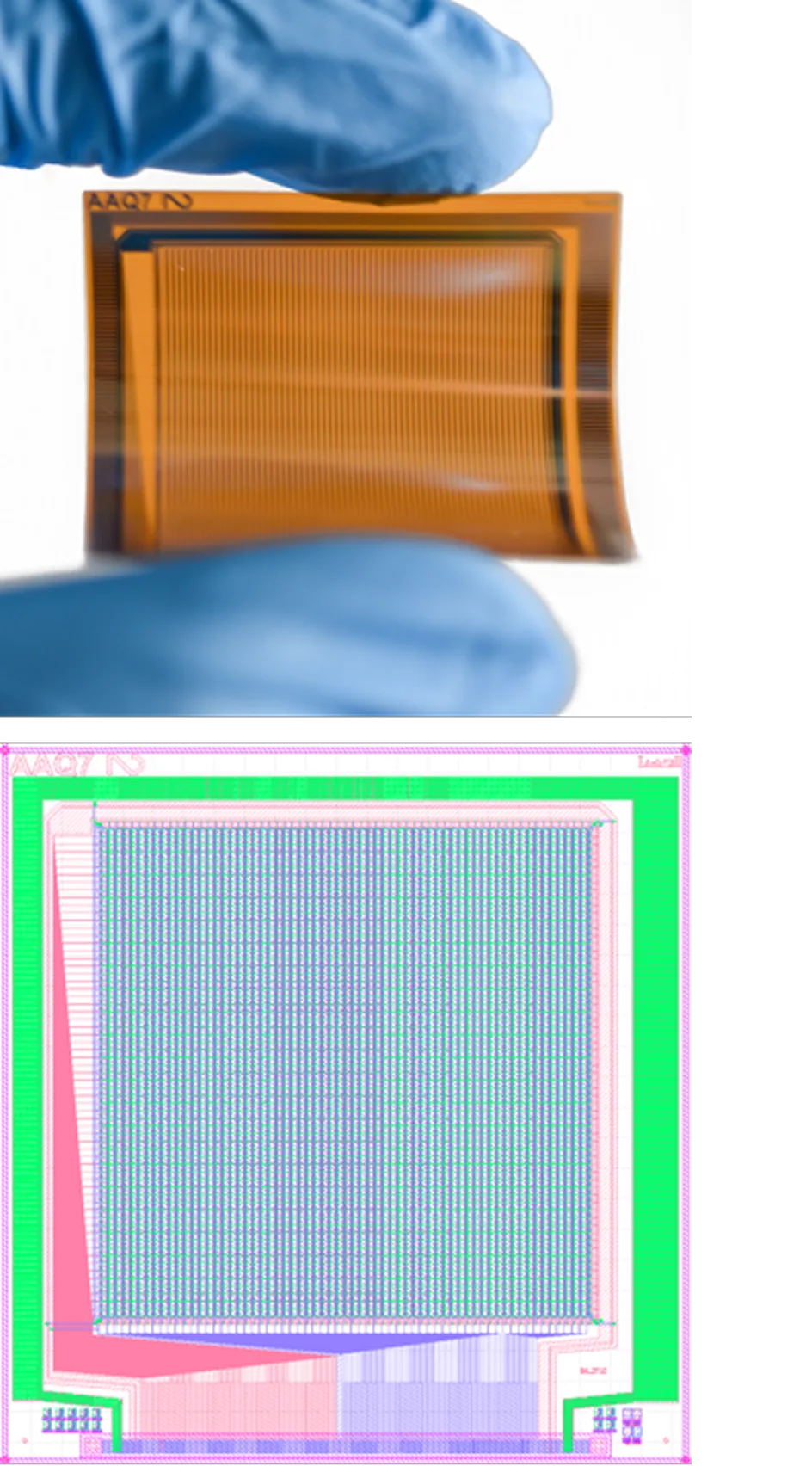

 TFT Type：a-Si Array Size：64 × 64 Chip Model：LC-TF-A064-2302 |
|||
| Backplane Size (H × V × T) | 44.64 × 46.64 × 0.015mm | ||||
| Active Area Size (H × V) | 32 × 32mm | ||||
| Resolution (H*V) | 64*64 | ||||
| Pixel Size | 500 × 500 μm | ||||
| TFT Size | TFT1 W/L=200/6μm；TFT2 W/L=4500/5μm | ||||
| Pixel Structure | 2T1C | ||||
| Pixel Structure |
|
||||
| Pixel Section | Space | 100μm | Width | 100μm | |
| Pitch | 200μm | Length | 800μm | ||
| Pin Function (from left to right) |
• 001-003：Dummy pin.
• 004-007：Vcom • 008-009：Dummy pin. • 010-011：VDD • 012-013：ESD • 014-077：Scan |
• 078-079：ESD
• 080-143：Data Read • 144-147：ESD • 148-149：VDD • 150-151：Dummy pin. • 152-155：Vcom • 156-160：Dummy pin. |
|||
| Potential Applications | OLED, QLED, Perovskite LED, LCD, Digital Paper, etc. | ||||
| Parameter | Specification | |||
| TFT Type | a-Si | |||
| Array Size | 64 × 64 | |||
| Chip Model | LC-TF-A064-2302 | |||
| Backplane Size (H × V × T) | 44.64 × 46.64 × 0.015mm | |||
| Active Area Size (H × V) | 32 × 32mm | |||
| Resolution (H*V) | 64*64 | |||
| Pixel Size | 500 × 500 μm | |||
| TFT Size | TFT1 W/L=200/6μm；TFT2 W/L=4500/5μm | |||
| Pixel Structure | 2T1C | |||
| Pixel Structure |
|
|||
| Pixel Section | Space | 100μm | Width | 100μm |
| Pitch | 200μm | Length | 800μm | |
| Pin Function (from left to right) |
• 001-003：Dummy pin.
• 004-007：Vcom • 008-009：Dummy pin. • 010-011：VDD • 012-013：ESD • 014-077：Scan |
• 078-079：ESD
• 080-143：Data Read • 144-147：ESD • 148-149：VDD • 150-151：Dummy pin. • 152-155：Vcom • 156-160：Dummy pin. |
||
| Potential Applications | OLED, QLED, Perovskite LED, LCD, Digital Paper, etc. | |||
Product Video
Display Series Comparison
 |
 |
 |
|
| Name | TruEbox 03MD (64×64) | TruEbox 04MD (256×256) | TruEbox 04MD (100×180) |
| L × W × H | 310 x 208 x 35 mm | 158 x 148.5 x 39mm | 310 x 208 x 35mm |
| Weight | 1100g | 600g | 1100g |
| Power Supply | Battery | Battery | AC Power |
| General |
• 64 channel pulse row signals,
voltage range: -15 V~+15 V • 64 channel pulse column signals, voltage range: -10 V~+10 V • 2 channel DC bias, -15 V~+15 V |
• 32+8 channel pulse row signals,
voltage range: -15 V~+15 V • 64+4 channel pulse column signals, voltage range: -15 V~+15 V • 2 channel DC bias, -15 V~+15 V |
• 100 channel pulse row signals
voltage range: -20 V~+20 V • 180 channel pulse column signals, voltage range: -10 V~+10 V • 2 channel DC bias signals, voltage range: -10 V~+10 V |
| Communication | Bluetooth | WiFi | USB |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) | Phone (Android 9.0, 6GB RAM or higher) | PC（Windows 10 or higher） |
| Display form | JPEG | JPEG, MP4 | JPEG, MP4 |
| Adaptive Video Playback | Do not support | Do not support | Support |
| Refresh Rate | 60Hz | 1~60Hz | 1~60Hz |
| Data bit | 1bit | 1bit | 8bit |
| Resolution | 64*64 | 256*256 | 100*180 |
|
|
|
|
| Name | TruEbox 03MD (64×64) | TruEbox 04MD (256×256) |
| L × W × H | 310 x 208 x 35 mm | 158 x 148.5 x 39mm |
| Weight | 1100g | 600g |
| Power Supply | Battery | Battery |
| General |
• 64 channel pulse row signals,
voltage range: -15V~+15V • 64 channel pulse column signals, voltage range: -10V~+10V • 2 channel DC bias, -15V~+15V |
• 32+8 channel pulse row signals,
voltage range: -15V~+15V • 64+4 channel pulse column signals, voltage range: -15V~+15V • 2 channel DC bias, -15V~+15V |
| Communication | Bluetooth | WiFi |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) | Phone (Android 9.0, 6GB RAM or higher) |
| Display form | JPEG | JPEG, MP4 |
| Adaptive Video Playback | Do not support | Do not support |
| Refresh Rate | 60Hz | 1~60Hz |
| Data bit | 1bit | 1bit |
| Resolution | 64*64 | 256*256 |
