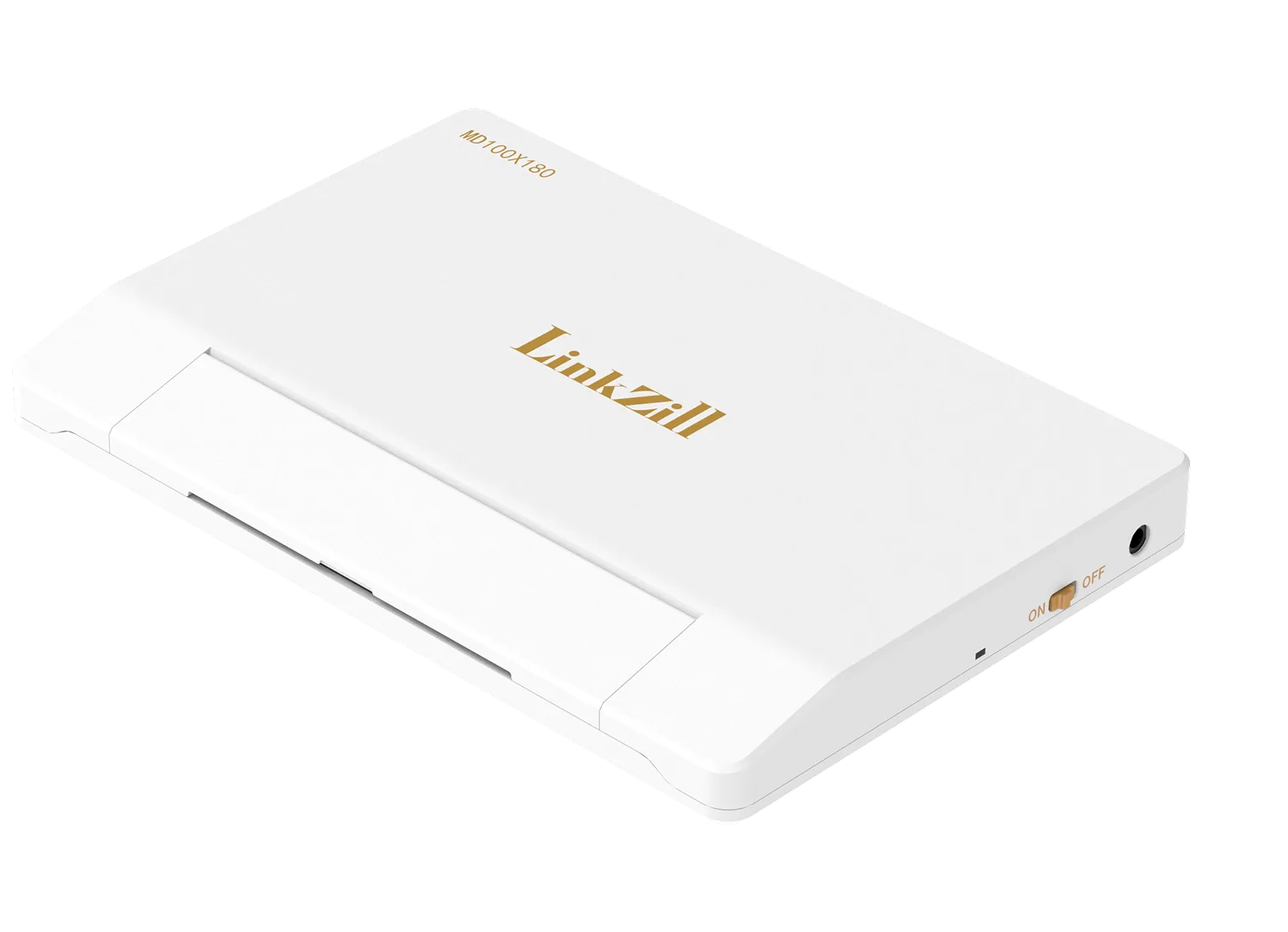

TruEbox 04MD (100×180) is primarily used to drive TFT arrays to illuminate LED devices with a maximum resolution of 100*180.
It can provide 100 rows of selection signals in the ±20V range,
180 columns of data signals in the ±10V range, and 2 DC bias signals in the ±10V range.
Customers can easily play pictures and videos on TFT arrays with LEDs through compatible PC software.
TruEbox 04MD (100×180) is primarily used to drive TFT arrays to illuminate LED devices with a maximum resolution of 100*180.
It can provide 100 rows of selection signals in the ±20V range, 180 columns of data signals in the ±10V range, and 2 DC bias signals in the ±10V range.
Customers can easily play pictures and videos on TFT arrays with LEDs through compatible PC software.
Introduction
256 grayscale display
- Superior display performance
Adjustable refresh rate
- Refresh rate adjustable from 1 to 60 Hz
Showcase customers' own content
- Compatible with JPG and MP4 formats
Representative Applications
Multiple novel display device
QLED
OLED
PeLED
System Specifications
| Parameter | Specification |
 |
| Model | Compatible with 64 x 64 TFT chips & 100 x 180 TFT chip | |
| L × W × H | 310 x 208 x 35mm | |
| Weight | 1100g | |
| Charging interface | DC005-5.5 x 2.5mm | |
| General |
• 100 channel pulse row signals, voltage range: -20 V~+20 V
• 180 channel pulse column signals, voltage range: -10 V~+10 V • 2 channel DC bias signals, voltage range: -10 V~+10 V |
|
| Communication | USB | |
| Terminal | PC（Windows 10 or higher） | |
| Display form | Images and Videos | |
| Adaptive video support | Yes | |
| Refresh rate | 1~60 Hz adjustable | |
| Data bit length | 8 bit (256 grey level) |
| Parameter | Specification |
| Model | Compatible with 64 x 64 TFT chips & 100 x 180 TFT chip |
| L × W × H | 310 x 208 x 35mm |
| Weight | 1100g |
| Charging interface | DC005-5.5 x 2.5mm |
| General |
• 100 channel pulse row signals, voltage range: -20V~+20V
• 180 channel pulse column signals, voltage range: -10V~+10V • 2 channel DC bias signals, voltage range: -10V~+10V |
| Communication | USB |
| Terminal | PC（Windows 10 or higher） |
| Display form | Images and Videos |
| Adaptive video support | Yes |
| Refresh rate | 1~60 Hz adjustable |
| Data bit length | 8 bit (256 grey level) |

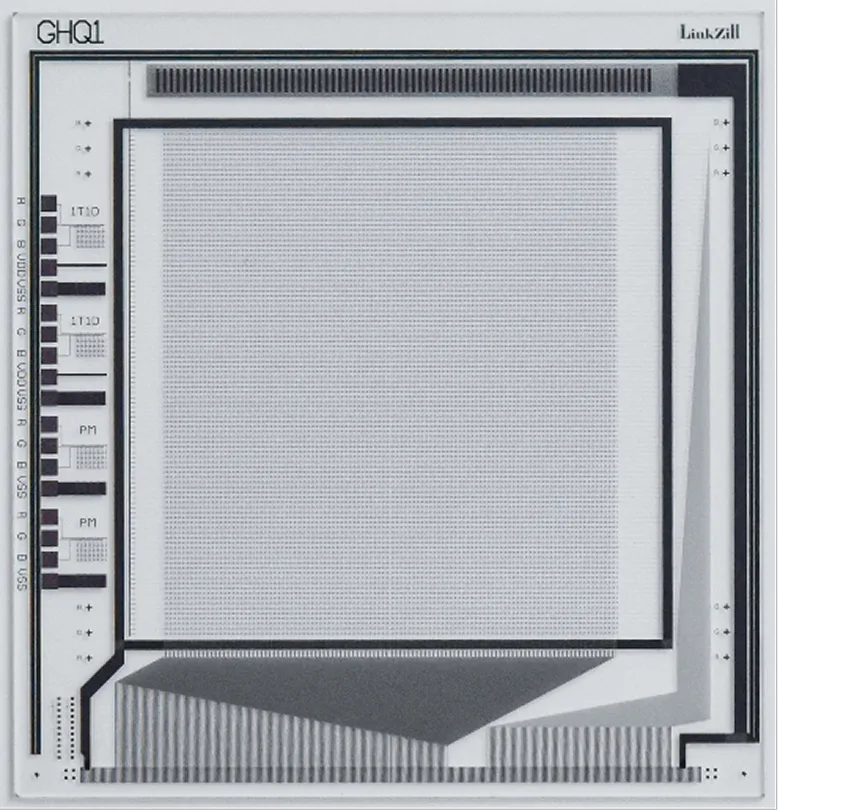

Chip Specifications
| Parameter | Specification |
 TFT Type：IGZO Array Size：100 x 180 Chip Model：LC-T-G100-2401 (GHQ1) |

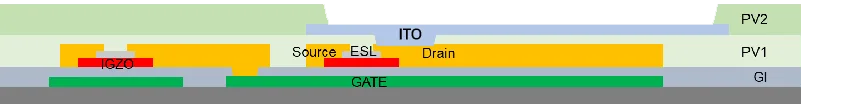

|||
| Backplane Size (H × V × T) | 44.64 x 46.64 x 0.5mm | ||||
| Active Area Size (H × V) | 27 x 30mm | ||||
| Resolution (H*V) | 100*180 | ||||
| Pixel Size | 300 x 150μm | ||||
| TFT Size | TFT1 W/L=10/10mm；TFT2 W/L=80/10μm | ||||
| Pixel Structure | 2T1C | ||||
| Pixel Section |
 |
||||
| Pin Size | Space | 40μm | Width | 70μm | |
| Pitch | 110μm | Length | 953μm | ||
| Pin Function (from left to right) |
• 001-002：Bonding test pin
• 003-006：VDD • 007-019：Dummy • 020-199：Data signal • 200-220：Dummy |
• 221-320：Scan
• 321-324：Dummy • 325-328：VSS • 329-334：Dummy • 335-336：Bonding test pin |
|||
| Potential Applications | OLED, QLED, Perovskite LED, LCD, Electronic Paper, etc. | ||||
| Parameter | Specification | |||
| TFT Type | IGZO | |||
| Array Size | 100 x 180 | |||
| Chip Model | LC-T-G100-2401 (GHQ1) | |||
| Backplane Size (H × V × T) | 44.64 x 46.64 x 0.5mm | |||
| Active Area Size (H × V) | 27 x 30mm | |||
| Resolution (H*V) | 100*180 | |||
| Pixel Size | 300 x 150μm | |||
| TFT Size | TFT1 W/L=10/10mm；TFT2 W/L=80/10μm | |||
| Pixel Structure | 2T1C | |||
| Pixel Section |
|
|||
| Pin Size | Space | 40μm | Width | 70μm |
| Pitch | 110μm | Length | 953μm | |
| Pin Function (from left to right) |
• 001-002：Bonding test pin
• 003-006：VDD • 007-019：Dummy • 020-199：Data signal • 200-220：Dummy |
• 221-320：Scan
• 321-324：Dummy • 325-328：VSS • 329-334：Dummy • 335-336：Bonding test pin |
||
| Potential Applications | OLED, QLED, Perovskite LED, LCD, Electronic Paper, etc. | |||
Product Video
Display Series Comparison
 |
 |
 |
|
| Name | TruEbox 03MD (64×64) | TruEbox 04MD (256×256) | TruEbox 04MD (100×180) |
| L × W × H | 310 x 208 x 35 mm | 158 x 148.5 x 39mm | 310 x 208 x 35mm |
| Weight | 1100g | 600g | 1100g |
| Power Supply | Battery | Battery | AC Power |
| General |
• 64 channel pulse row signals,
voltage range: -15V~+15V • 64 channel pulse column signals, voltage range: -10V~+10V • 2 channel DC bias, -15V~+15V |
• 32+8 channel pulse row signals,
voltage range: -15V~+15V • 64+4 channel pulse column signals, voltage range: -15V~+15V • 2 channel DC bias, -15V~+15V |
• 100 channel pulse row signals
voltage range: -20V~+20V • 180 channel pulse column signals, voltage range: -10V~+10V • 2 channel DC bias signals, voltage range: -10V~+10V |
| Communication | Bluetooth | WiFi | USB |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) | Phone (Android 9.0, 6GB RAM or higher) | PC（Windows 10 or higher） |
| Display form | JPEG | JPEG, MP4 | JPEG, MP4 |
| Adaptive Video Playback | Do not support | Do not support | Support |
| Refresh Rate | 60Hz | 1~60Hz | 1~60Hz |
| Data bit | 1bit | 1bit | 8bit |
| Resolution | 64*64 | 256*256 | 100*180 |
|
|
|
|
| Name | TruEbox 04MD (256×256) | TruEbox 04MD (100×180) |
| L × W × H | 158 x 148.5 x 39mm | 310 x 208 x 35mm |
| Weight | 600g | 1100g |
| Power Supply | Battery | AC Power |
| General |
• 32+8 channel pulse row signals,
voltage range: -15V~+15V • 64+4 channel pulse column signals, voltage range: -15V~+15V • 2 channel DC bias, -15V~+15V |
• 100 channel pulse row signals
voltage range: -20V~+20V • 180 channel pulse column signals, voltage range: -10V~+10V • 2 channel DC bias signals, voltage range: -10V~+10V |
| Communication | WiFi | USB |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) | PC（Windows 10 or higher） |
| Display form | JPEG, MP4 | JPEG, MP4 |
| Adaptive Video Playback | Do not support | Support |
| Refresh Rate | 1~60Hz | 1~60Hz |
| Data bit | 1bit | 8bit |
| Resolution | 256*256 | 100*180 |
