TruEbox 06V-MC16 is a portable resistive array measurement device capable of real-time and accurate multiple measurement channels of data.
It transmits the data via Bluetooth to PC software, enabling real-time display of test curves, storage, and sharing of the data.
TruEbox 06V-MC16 is a portable resistive array measurement device capable of real-time and accurate multiple measurement channels of data.
It transmits the data via Bluetooth to PC software, enabling real-time display of test curves, storage, and sharing of the data.
Introduction
Real-time data display, storage, and sharing
- Significantly improves measuring efficiency
High Input lmpedance
- Input Impedance: 10 GΩ
Multi-channel voltage measurements
- Up to 16 measurement channels
Representative Applications
Sensor characterization

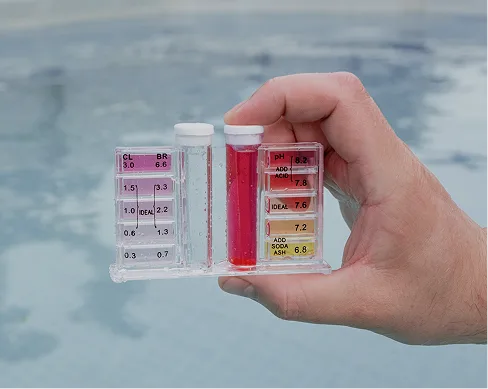

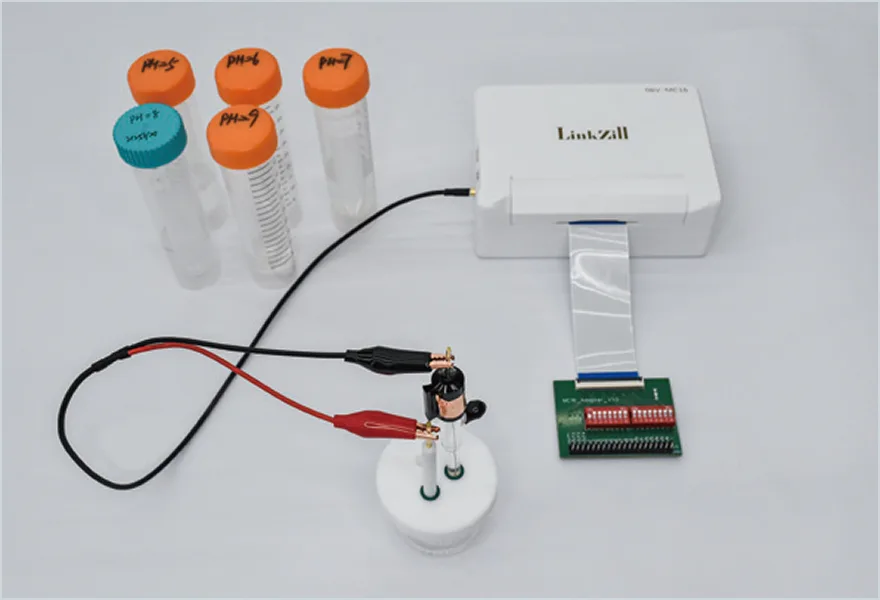

pH detection
Sports health monitoring
Biomedical testing
Product Specifications
| Parameter | Specificaion | |
| Model | LZ-06V-MC16 | |
| L × W × H | 132 × 96 × 48mm | |
| Weight | 450g | |
| Charging Interface | USB Type-C | |
| Test Interface | 30 pins FPC connector (Multichannel), MCX connector (Single) | |
| Communication | USB | |
| Terminal | PC (Windows 10 or higher) | |
| Measurement Range | ±10V | |
| Duration | Operates on AC power or battery, providing 3 hours of continuousmeasurement per charge | |
| Data Output Rate | Single | <5000 data points/second |
| Multichannel | <150 data points/second/channel | |
| Save | Original data: .CSV; V-tlmage:.PNG | |
| Parameter | Specificaion | |
| Model | LZ-06V-MC16 | |
| L × W × H | 132 × 96 × 48mm | |
| Weight | 450g | |
| Charging Interface | USB Type-C | |
| Test Interface | 30 pins FPC connector (Multichannel), MCX connector (Single) | |
| Communication | USB | |
| Terminal | PC (Windows 10 or higher) | |
| Measurement Range | ±10V | |
| Duration | Operates on AC power or battery, providing 3 hours of continuousmeasurement per charge | |
| Data Output Rate | Single | <5000 data points/second |
| Multichannel | <150 data points/second/channel | |
| Save | Original data: .CSV; V-tlmage:.PNG | |
Examples

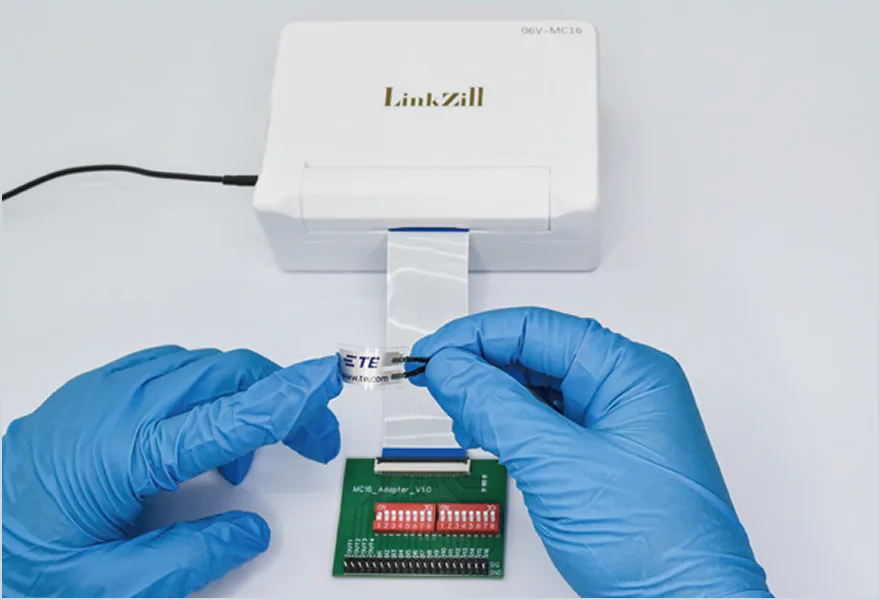

Pressure Sensing
Temperature Sensing
