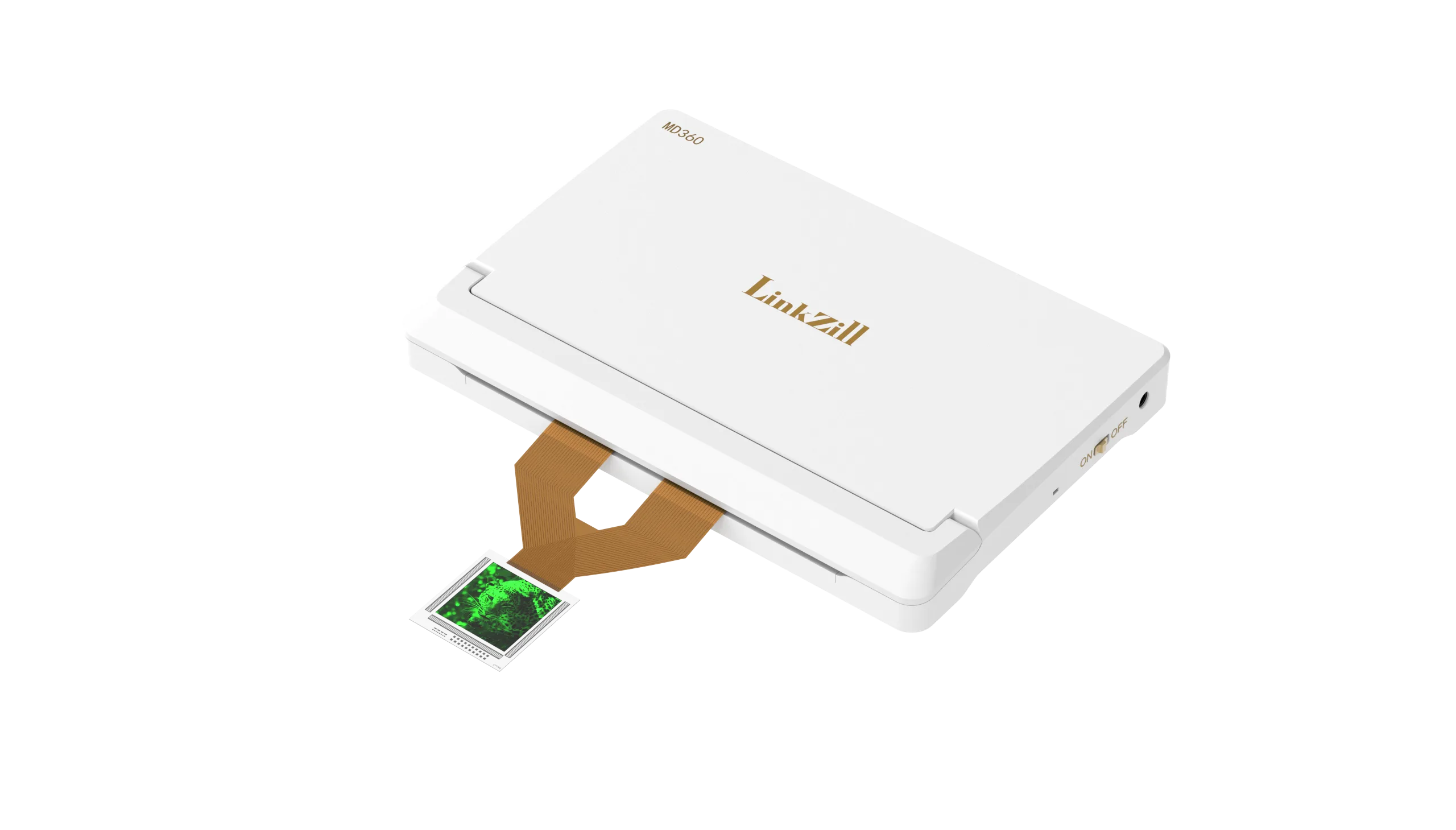

TruEbox 04MD (360×360) is mainly used for signal driving of array display devices and supports up to 360*360 resolution array driving.
It can provide 360 rows of select signals, 360 columns of feed signals, and 2 DC bias signals.
Customers can easily play pictures and videos on TFT arrays with LEDs through compatible PC software.
TruEbox 04MD (360×360) is mainly used for signal driving of array display devices and supports up to 360*360 resolution array driving.
It can provide 360 rows of select signals, 360 columns of feed signals, and 2 DC bias signals.
Customers can easily play pictures and videos on TFT arrays with LEDs through compatible PC software.
Introduction
360*360 high resolution
- Outstanding display performance
Adjustable refresh rate
- Refresh rate adjustable from 1 to 60 Hz
Video playback is supported
- Allows customersto import their own content
Representative Applications
Multiple novel display device
QLED
OLED
PeLED
System Specifications
| Parameter | Specification |
 |
| Model | LZ-04AMD (360×360) | |
| L × W × H | 310 x 208 x 33 mm | |
| Weight | 1000g | |
| Charging interface | DC005-5.5 x 2.5mm | |
| General |
• 90+4 channel pulse row signals, voltage range: -20 V~+20 V
• 180+2 channel pulse column signals: voltage range: -10 V~+10 V • 2 channel DC bias: -10 V~+10 V |
|
| Communication | USB | |
| Terminal | PC（Windows 10 or higher） | |
| Display form | Images and Videos | |
| Adaptive video support | Yes | |
| Refresh rate | 1~60 Hz adjustable | |
| Data bit length | 8 bit (256 grey level) |
| Parameter | Specification |
| Model | LZ-04AMD (360×360) |
| L × W × H | 310 x 208 x 33 mm |
| Weight | 1000g |
| Charging interface | DC005-5.5 x 2.5mm |
| General |
• 90+4 channel pulse row signals, voltage range: -20 V~+20 V
• 180+2 channel pulse column signals: voltage range: -10 V~+10 V • 2 channel DC bias: -10 V~+10 V |
| Communication | USB |
| Terminal | PC（Windows 10 or higher） |
| Display form | Images and Videos |
| Adaptive video support | Yes |
| Refresh rate | 1~60 Hz adjustable |
| Data bit length | 8 bit (256 grey level) |
Chip Specifications
| Parameter | Specification |
 TFT Type：IGZO Array Size：360 × 360 Chip Model：LC-T-G360-GMQ1 |
|||
| Backplane Size (H × V × T) | 44.64 x 46.64 x 0.5mm | ||||
| Active Area Size (H × V) | 32.4 x 32.4mm | ||||
| Resolution (H*V) | 360*360 | ||||
| Pixel Size | 90 x 90μm | ||||
| TFT Size | TFT1 W/L=10/10μm；TFT2 W/L=64/10μm | ||||
| Pixel Structure | 2T1C | ||||
| Pixel Section |
 |
||||
| Pin Size | Space | 40μm | Width | 70μm | |
| Pitch | 110μm | Length | 952μm | ||
| Pin Function (from left to right) |
• 001-002、335~336：Bonding Test
• 003-006：VDD • 007-008：Data Mux1~2 • 009-019、200~213、221~230、321~324、329~334：Dummy pin. |
• 020-199：Data
• 214-216：VGL1、VGL、VGH • 217-220：CK4~CK1 • 231-320：Scan • 325-328：Vcom |
|||
| Potential Applications | OLED, QLED, Perovskite LED, LCD, Electronic Paper, etc. | ||||
| Parameter | Specification | |||
| Backplane Size (H × V × T) | 44.64 x 46.64 x 0.5mm | |||
| Active Area Size (H × V) | 32.4 x 32.4mm | |||
| Resolution (H*V) | 360*360 | |||
| Pixel Size | 90 x 90μm | |||
| TFT Size | TFT1 W/L=10/10μm；TFT2 W/L=64/10μm | |||
| Pixel Structure | 2T1C | |||
| Pixel Section |
|
|||
| Pin Size | Space | 40μm | Width | 70μm |
| Pitch | 110μm | Length | 952μm | |
| Pin Function (from left to right) |
• 001-002、335~336：Bonding Test
• 003-006：VDD • 007-008：Data Mux1~2 • 009-019、200~213、221~230、321~324、329~334：Dummy pin. |
• 020-199：Data
• 214-216：VGL1、VGL、VGH • 217-220：CK4~CK1 • 231-320：Scan • 325-328：Vcom |
||
| Potential Applications | OLED, QLED, Perovskite LED, LCD, Electronic Paper, etc. | |||
Product Video
Display Series Comparison
 |
 |
 |
|
| Name | TruEbox 04MD (256×256) | TruEbox 04MD (100×180) | TruEbox 04MD (360×360) |
| L × W × H | 158 x 148.5 x 39mm | 310 x 208 x 35mm | 310 x 208 x 33mm |
| Weight | 600g | 1100g | 1000g |
| Power Supply | Battery | AC Power | AC Power |
| General |
• 32+8 channel pulse row signals,
voltage range: -15V~+15V • 64+4 channel pulse column signals, voltage range: -15V~+15V • 2 channel DC bias, -15V~+15V |
• 100 channel pulse row signals
voltage range: -20V~+20V • 180 channel pulse column signals, voltage range: -10V~+10V • 2 channel DC bias signals, voltage range: -10V~+10V |
• 90+4 channel pulse row signals,
voltage range: -20V~+20V • 180+2 channel pulse column signals, voltage range: -10V~+10V • 2 channel DC bias, -10V~+10V |
| Communication | WiFi | USB | USB |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) | PC（Windows 10 or higher） | PC（Windows 10 or higher） |
| Display form | JPEG, MP4 | JPEG, MP4 | JPEG, MP4 |
| Adaptive Video Playback | Do not support | Support | Support |
| Refresh Rate | 1~60Hz | 1~60Hz | 1~60Hz |
| Data bit | 1bit | 8bit | 8bit |
| Resolution | 256*256 | 100*180 | 360*360 |
|
|
 |
|
| Name | TruEbox 04MD (256×256) | TruEbox 04MD (360×360) |
| L × W × H | 158 x 148.5 x 39mm | 310 x 208 x 33mm |
| Weight | 600g | 1000g |
| Power Supply | Battery | AC Power |
| General |
• 32+8 channel pulse row signals,
voltage range: -15V~+15V • 64+4 channel pulse column signals, voltage range: -15V~+15V • 2 channel DC bias, -15V~+15V |
• 90+4 channel pulse row signals,
voltage range: -20V~+20V • 180+2 channel pulse column signals, voltage range: -10V~+10V • 2 channel DC bias, -10V~+10V |
| Communication | WiFi | USB |
| Terminal | Phone (Android 9.0, 6GB RAM or higher) | PC（Windows 10 or higher） |
| Display form | JPEG, MP4 | JPEG, MP4 |
| Adaptive Video Playback | Do not support | Support |
| Refresh Rate | 1~60Hz | 1~60Hz |
| Data bit | 1bit | 8bit |
| Resolution | 256*256 | 360*360 |
